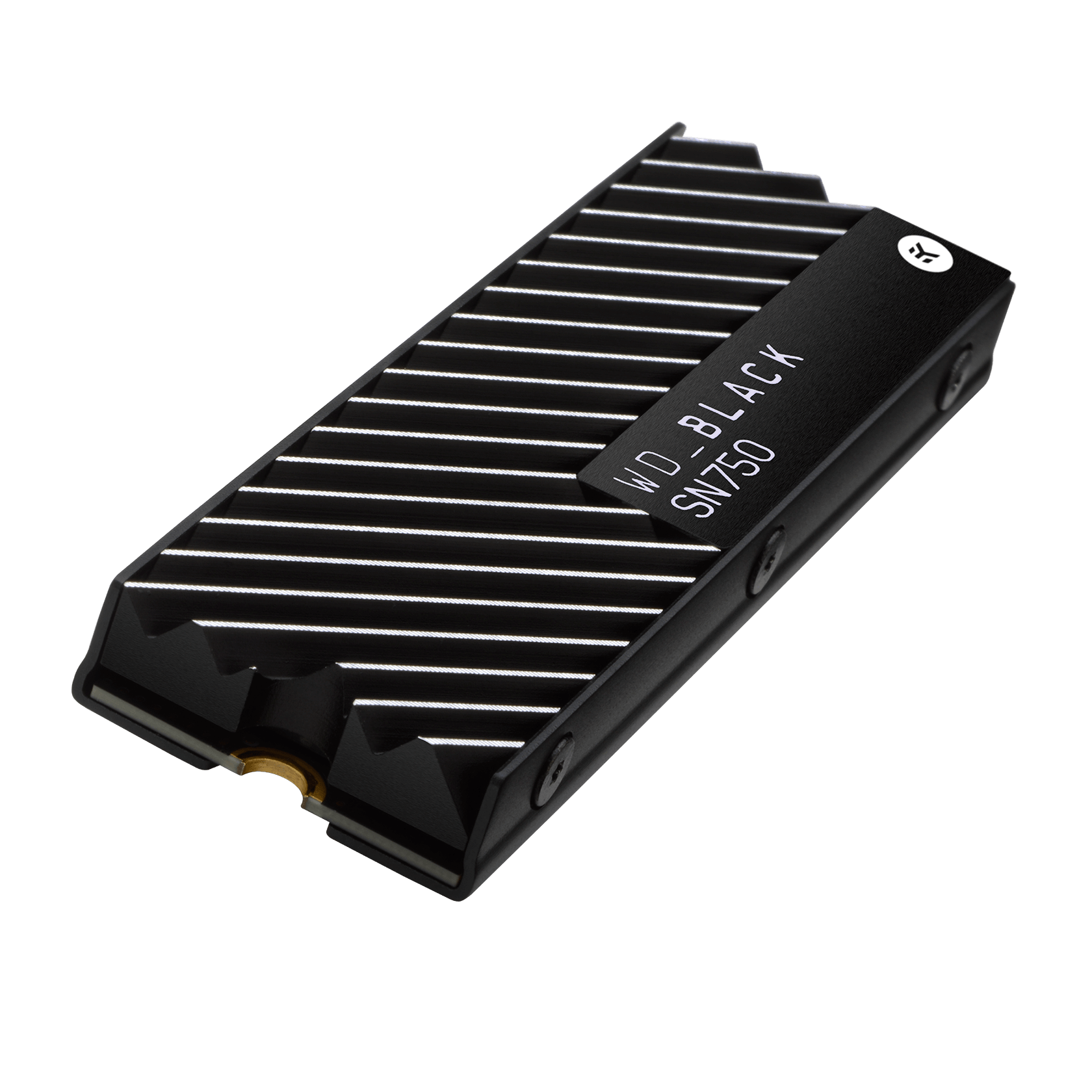

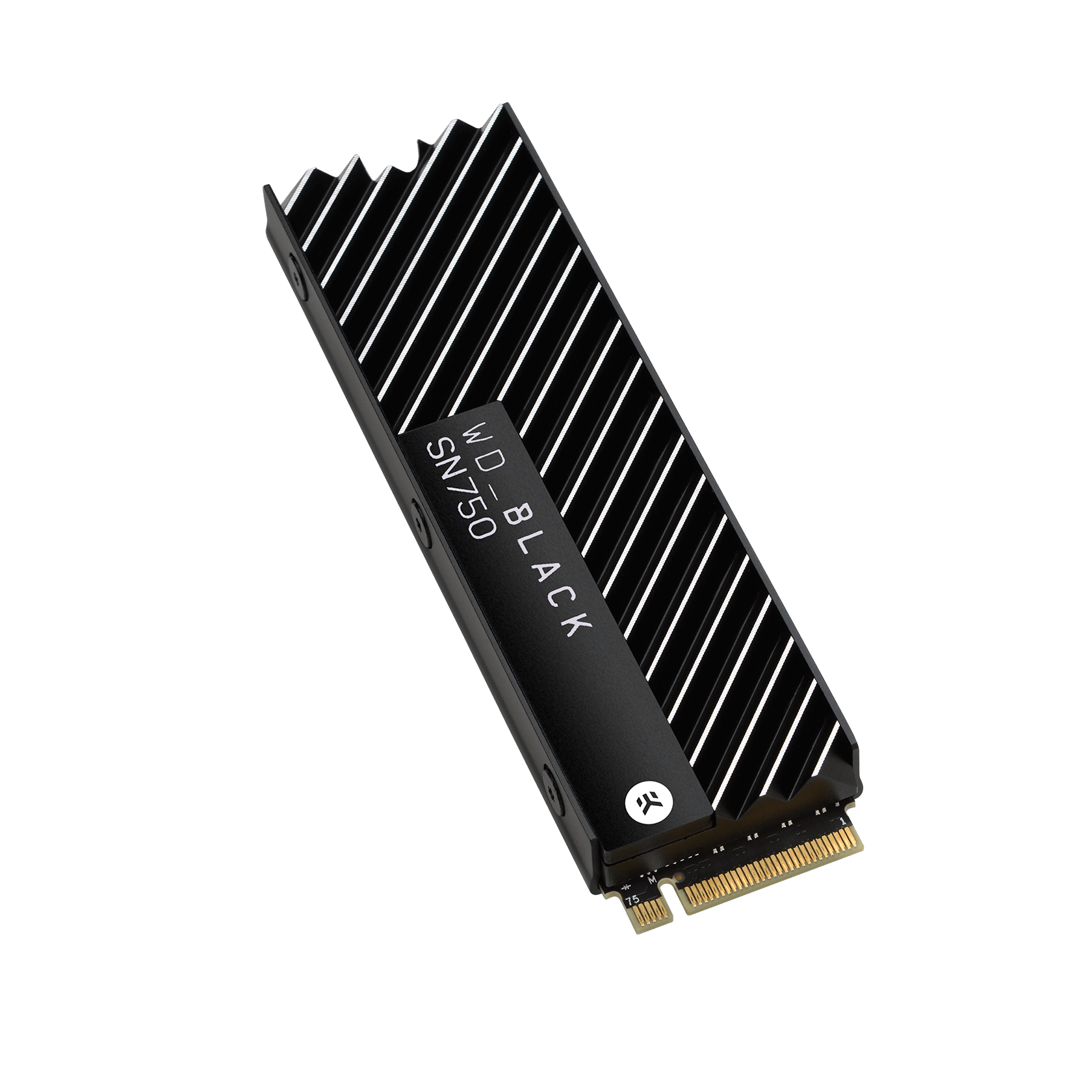

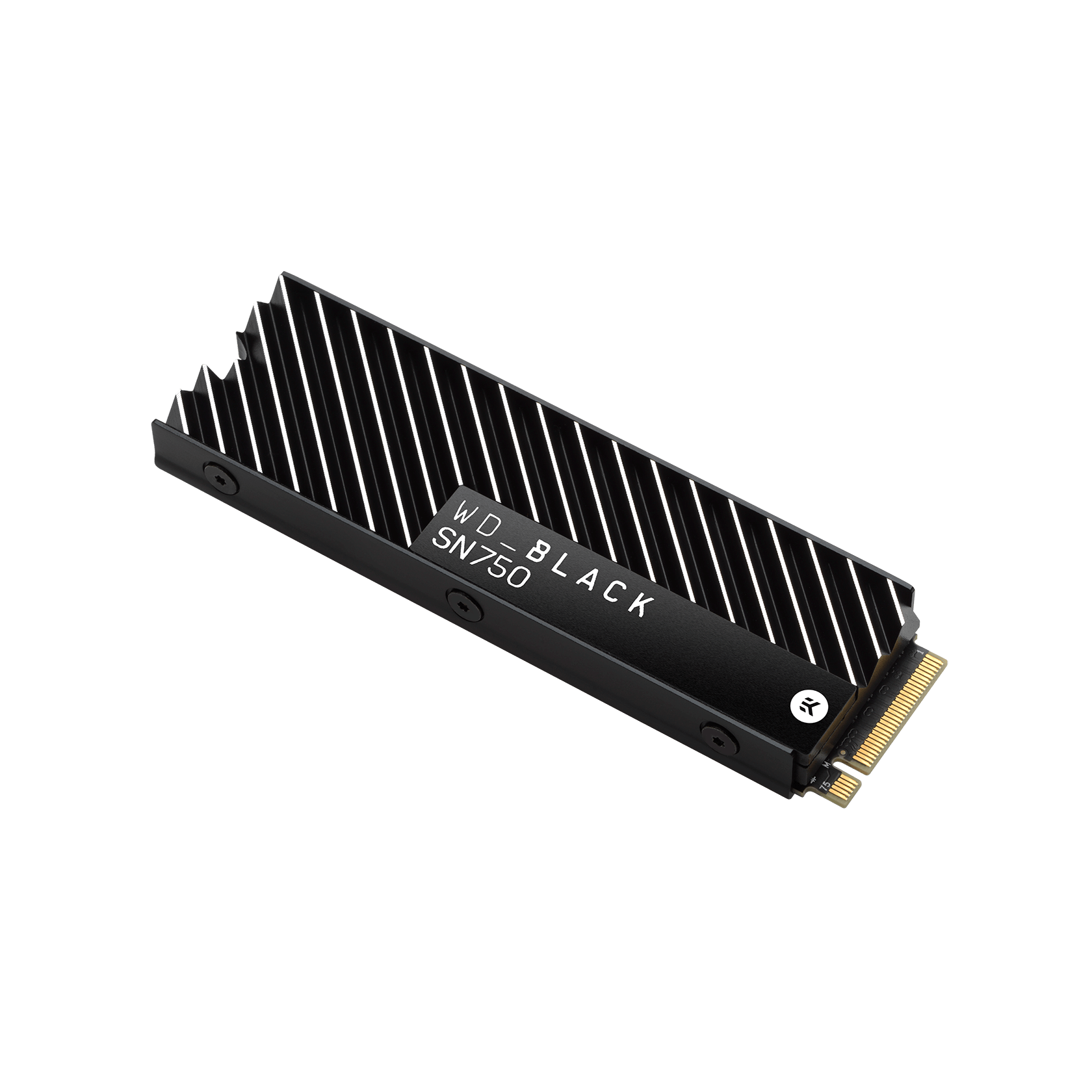

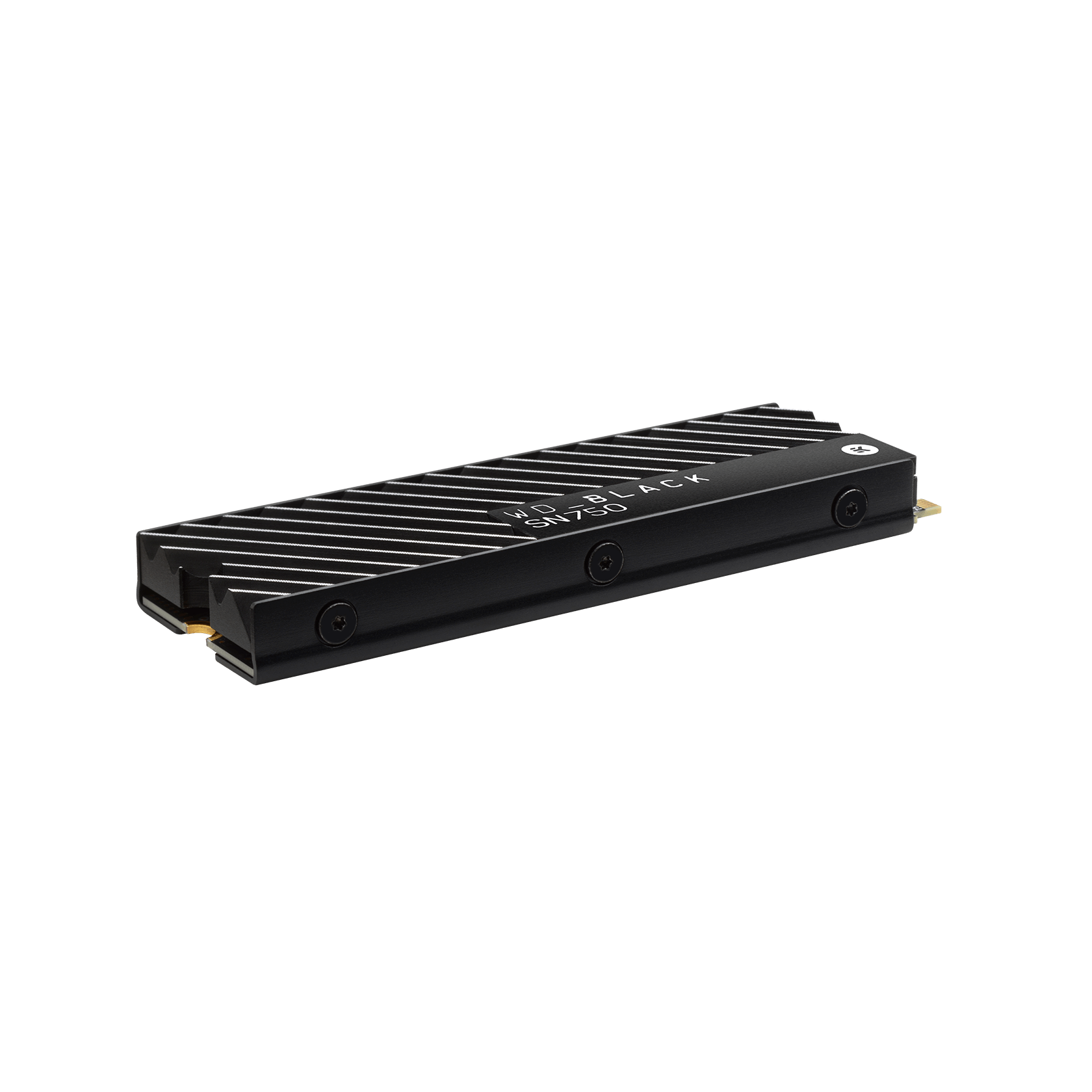

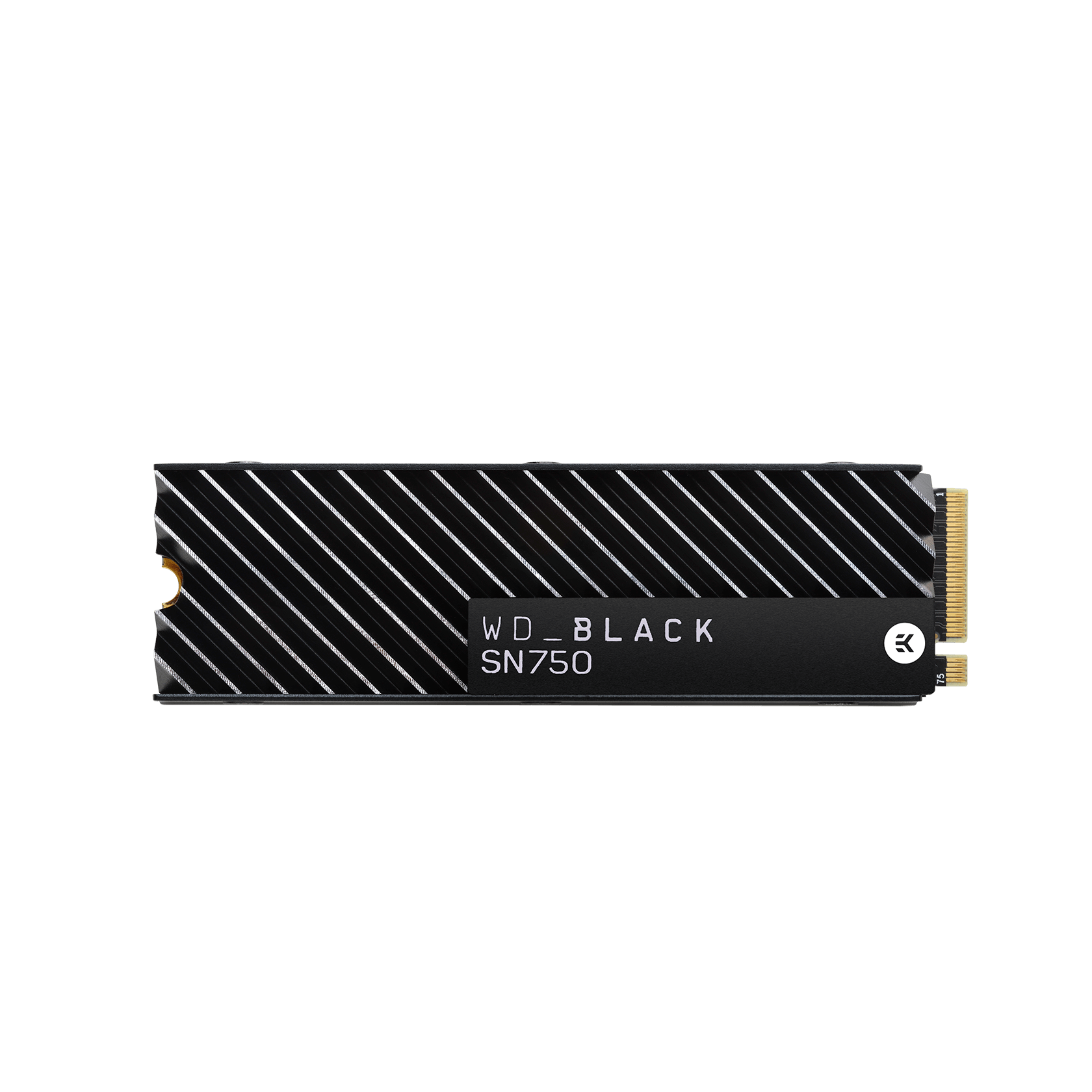

WD_BLACK SN750 NVMe SSD with Heatsink
Internal Solid State Drive (SSD) Performance Storage
WD_BLACK SN750 NVMe SSD with Heatsink - 500GB
Our Price: $89.99
Level Up To NVMe SSD Performance
The WD_BLACK SN750 NVMe SSD delivers top-tier performance for gaming and hardware enthusiasts who are looking to build or upgrade their PC. Available in capacities up to 4TB, the WD_BLACK SN750 NVMe SSD rivals some of the best performing drives on the market to help give gamers that competitive edge.
Live life in the fast lane, whether you’re looking to boost your system’s overall responsiveness or load games and levels quickly, the WD_BLACK NVMe drive cuts down on your wait time to get back into action and gets you ahead of the game. Our fastest computing NVMe SSD can deliver speeds more than six times faster than our fastest SATA SSD (up to 3,470MB/s2 vs. 560MB/s) to give hardcore gamers the competitive edge they need.
Space to Play
At the core of the WD_BLACK NVMe SSD is its revolutionary NAND technology. By doubling the storage density from its previous generation, our 3D NAND pushes the limitations of storage and showcases the amazing feat of NAND innovation. This means extended capacity on a single-sided drive that’s roughly the size of a gumstick, enough to store your large files and video games.
Sleek Heatsink Design
Every system is not created equal. From different graphics cards and CPUs to DRAM and storage, PCs all differ in performance and appearance. The WD_BLACK SSD’s sleek and modern heatsink model1 goes well with desktop PC builds that support the M.2 form factor and is the perfect component to complement systems with RGB lighting and other cooling technologies, such as water cooling.
- SN750 is available with or without heatsink.
- SN750 wth heatsink is intended for Desktop PCs. Please note these disclaimers.3
The WD_BLACK SSD Dashboard4
The WD_BLACK SSD Dashboard gives you the ability to optimize performance by enabling the gaming mode feature. This disables the low power mode function on the SSD, which keeps your drive firing on all cylinders during intense gaming sessions.
1 As used for storage capacity, one gigabyte (GB) = one billion bytes and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
2 Megabyte per second (MB/s) = one million bytes per second. Based on internal testing; performance may vary depending upon host device, usage conditions, drive capacity, and other factors.
3 Do not overtighten the WD_BLACK SN750 with heatsink to the motherboard (follow standard M.2 screw torque).
4 Available for download at www.westerndigital.com.
PCIe Gen3 8 Gb/s, up to 4 Lanes
- Backward Compatible with PCIe Gen3 x2, PCIe Gen3 x1, PCIe Gen2 x4, PCIe Gen2 x2, and PCIe Gen2 x1
- Windows 8.1, 10
- PlayStation 56
- Operating temperature: 32°F to 158°F (0°C to 70°C)
- Non-operating temperature: -67°F to 185°F (-55°C to 85°C)
Length: 80 ± 0.15mm
Width: 24.2 ± 0.30mm
Weight: 9.57g ± 1g
- 2TB: 1,200
- 1TB: 600
- 500GB: 300
- Sequential Read:
- 2TB: 3,400MB/s
- 1TB: 3,470MB/s
- 500GB: 3,430MB/s
- Sequential Write:
- 2TB: 2,900MB/s
- 1TB: 3,000MB/s
- 500GB: 2,600MB/s
- Random Read:
- 2TB: 480K IOPS
- 1TB: 515K IOPS
- 500GB: 420K IOPS
- Random Write:
- 2TB: 550K IOPS
- 1TB: 560K IOPS
- 500GB: 380K IOPS
MTTF7: 1,750,000 hours (Telcordia SR-332, GB, 40°C)
1 Based on read speed and internal testing. As used for transfer rate, megabyte per second (MB/s) = one million bytes per second. Performance will vary depending on your hardware and software components and configurations.
2 As used for storage capacity, one gigabyte (GB) = one billion bytes and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
3 IOPS = input/output operations per second. Performance will vary depending on your hardware and software components and configurations.
4 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
5 Operational temperature is measured by an on board temperature sensor. Non-operational storage temperature does not guarantee data retention.
6 Limited to heatsink model only and Playstation 5 system software version 21.02-04.00.00 or higher required.
7 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing (Telcordia SR-332, GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drive’s reliability and does not constitute a warranty.
8 5 years or Max Endurance (TBW) limit, whichever occurs first.
Download the WD_BLACK SN750 NVMe SSD Datasheet (.PDF)
- Pricing and product availability subject to change without notice.
