WD Red SA500 NAS SATA SSD
M.2 2280 SATA Solid State Drive (SSD)

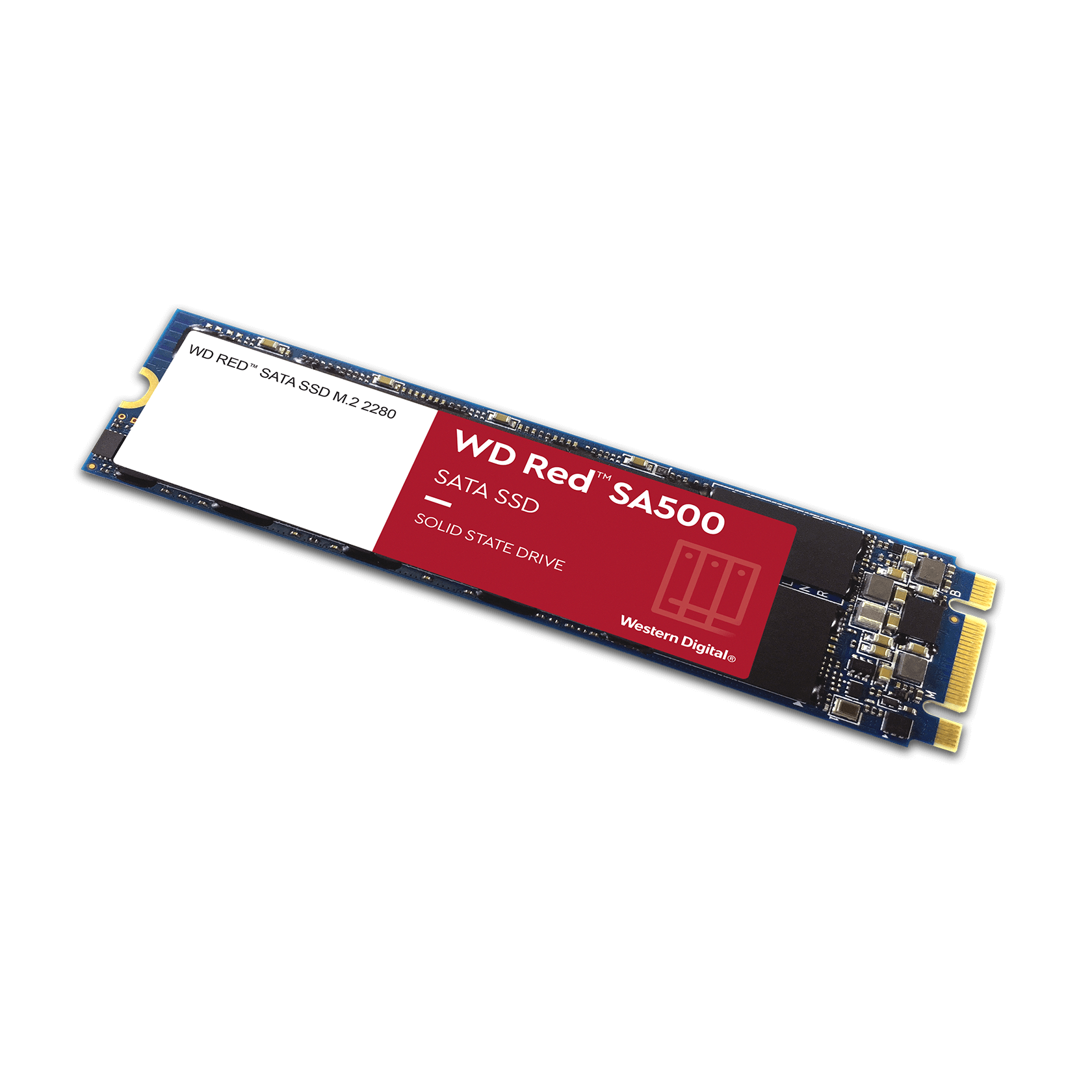

WD Red SA500 NAS SATA SSD M.2 2280 - 500GB
Our Price: $74.99
- Storage optimized for caching in NAS systems to rapidly access your most freuently used files.
- Superior endurance can handle the heavy read and write loads demanded by NAS, giving you the reliability you need in a 24/7 environment.
- Reduces latency and improves responsiveness for OLTP databases, multi-user environments, photo rendering, 4K and 8K video editing, and more.
A SATA III Internal SSD is Ideal for Any NAS Array
Boost your SSD NAS system’s performance and responsiveness with the WD Red SA500 NAS SATA SSD. Your NAS system is always on, making a reliable drive essential. Unlike standard NAS SSDs, WD Red NAS SATA SSDs are specifically designed and tested for 24/7 usage. This durability together with efficient caching of big files make these drives ideal for OPLTP databased, mult-user environments, photo rendering, 4K and 8K video editing and other demanding applications. With 2.5" and M.2 form factors and capacities from 500GB up to 4TB1 (2.5" only), the WD Red SA500 NAS SATA SSD lets you optimize your existing or next NAS system for superior performance and endurance.
Fast, Reliable SATA III Storage
A WD Red SA500 NAS SATA SSD can enhance your NAS’s response time. Efficient caching of big files makes the WD Red SSD ideal for OLTP databases, multi-user environments, photo rendering, 4k and 8k video editing and more.
Work Faster and Save Time
Western Digital 3D NAND, the WD Red SSD delivers outstanding SATA III performance to accelerate your productivity and save you time.
Blazing-Fast File Access
WD Red SSDs are optimized for fast file access and can cache your most frequently used data for even faster access.
Intense Apps are No Problem
HD Video, 4K and 8K formats require a fast drive that reduces latency for hassle-free editing and transfer of huge multimedia files.
The Endurance of SSD
Because WD Red SSDs have no moving parts, there’s less to wear out over time – heat and vibration are reduced as well.
5-Year Limited Warranty
Equipped with an industry-leading 5-year warranty, you can be confident in WD Red SSDs for years to come.
1 1GB = 1 billion bytes and 1TB = one trillion bytes. Actual user capacity may be less, depending on the operating environment.
|Form Factor M.2 2280||WDS400T1R0B||WDS200T1R0B||WDS100T1R0B|
|Interface||SATA III 6 Gb/s||SATA III 6 Gb/s||SATA III 6 Gb/s|
|Performance3 [4KB QD32]|
|Sequential Read up to (MB/s)||560||560||560|
|Sequential Write up to (MB/s)||530||530||530|
|Random Read up to (IOPS)||95K||95K||95K|
|Random Write up to (IOPS)||82K||85K||85K|
|Avg. Active Power||60||60||60|
|Max Read Operating||3,000||3,000||2,550|
|Max Write Operating||3,800||3,800||3,750|
|MTTF6||Up to 2,000,000 hours|
|Operating Temperatures||32°F to 158°F (0°C to 70°C)|
|Non-operating Temperatures||-67°F to 185°F (-55°C to 85°C)|
|Operating Vibration||5.0 gRMS, 10–2000 Hz|
|Non-operating Vibration||4.9 gRMS, 7–800 Hz|
|Shock||1,500 G @ 0.5 msec half sine|
|Certifications||FCC, UL, TUV, KC, BSMI, VCCI|
|Limited Warranty||5 years|
|Size||80.00mm x 22.00mm x 2.38mm|
|Weight||7g ± 1g||7g ± 1g||7g ± 1g|
1 Backwards compatible to SATA 3 Gb/s and SATA 1.5 Gb/s.
2 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 6 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
3 Measured using CrystalDiskMark, 1000MB LBA range, on Desktop with Intel Z77 chipset, Window 8 with Intel iRST version 184.108.40.2063, secondary driveLenovo X240 with Intel Core i5-4300U, 4GB RAM, Windows 8.1 update1x64, Intel RST 220.127.116.115. Performance may vary based on host device. 1MB = 1,000,000 bytes. IOPS = input/output operations per second.
4 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
5 Measured using the MobileMark 2012 benchmark with DIPM (Device Initiated Power Management) enabled.
6 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing.
7 Operational temperature is measured by an on board temperature sensor. The SSD box package is rated up to 60C°.
Download the WD Red SA500 NAS SATA SSD Datasheet (.PDF)
