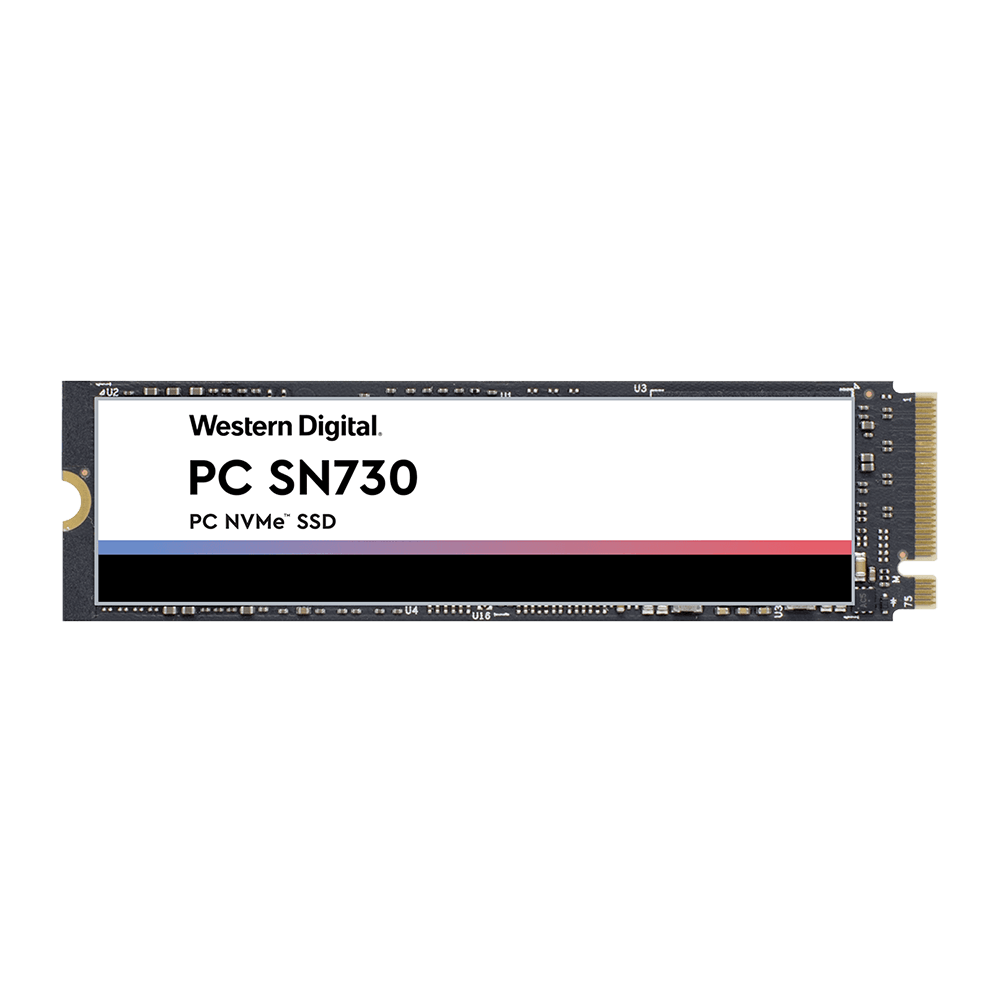

WD PC SN730 NVMe SSD
M.2 2280 Unleashed Performance Solid State Drive (SSD)

Overview

Introducing a New Layer of Performance

With future-ready, scalable NVMe architecture, the Western Digital PC SN730 NVMe SSD is breaking through performance limits of client computing and enabling partners to support higher storage applications in today’s mobile and ultra-thin computing markets while supporting an extreme sleep mode of 3.5mW.

The Western Digital PC SN730 NVMe SSD offers an exceptional performance option for all computing customer who seek a compact storage device with high capacity points from 256GB to 1TB.

Applications and Workloads

• High Performance PCs and Laptops
• Gaming
• Ultra HD or 4K Video Creation
• VR Content Creation
• High-Bandwidth Corporate Computing

NVMe Architecture

The Western Digital PC SN730 NVMe SSD, supporting PCIe Gen3 x4, is designed for applications that require both high performance and low power, such as gaming, Ultra HD or 4K video and VR content creation, post production processing and high-bandwidth corporate computing such as for software development and compilation.

Unmatched Performance

Equipped with a fully integrated solution that includes an in-house controller, 96-layer 3D NAND, firmware, and extensive testing, Western Digital provides longevity of supply in a robust and reliable design.

Designed with Western Digital's in-house tiered-caching NVMe architecture, the Western Digital PC SN730 NVMe SSD delivers extreme performance with streaming sequential read and write speeds up to 3,400MB/s respectively and high endurance up to 400 TBW, all of which is available in a M.2 2280 form factor.

Summary

The Western Digital PC SN730 NVMe SSD packs the knockout punch in a compact design that enables outstanding performance for the most intensie compute applications seeking a reliable storage device with capacity points from 256GB to 1TB

Specifications

Formatted Capacity1	256GB	512GB	1TB
Form Factor	M.2 2280
Interface	PCIe Gen3 x4 NVMe v1.3
Performance3 [4KB QD32]
Sequential Read up to (MB/s)	3,150	3,400	3,400
Sequential Write up to (MB/s)	2,100	2,700	3,100
Random Read up to (IOPS)	270K	460K	550K
Random Write up to (IOPS)	280K	400K	550K
Endurance (TBW)3	200	300	400
Power
Peak Power (10µ)	1.7A	1.9A	2.3A
Average Active Power4,5	100mW	100mW	100mW
Low Power (PS3)5	30mW	30mW	30mW
Sleep (PS4)5	3.5mW	3.5mW	3.5mW
Supply Voltage (VDC/ ±5%)	3.3	3.3	3.3
Reliability
MTTF6	Up to 1,750,000 hours
Environmental
Operating Temperatures7	32°F to 158°F (0°C to 70°C)
Non-operating Temperatures8	-67°F to 185°F (-55°C to 85°C)
Operating Vibration	5.0 gRMS, 10–2000 Hz, 3 axes
Non-operating Vibration	4.9 gRMS, 7–800 Hz, 3 axes
Shock	1,500 G @ 0.5 ms half sine, 3 pulses per face
Certifications	FCC, UL, TUV, KCC, BSMI, VCCI, C-Tick
Limited Warranty	5 years
Physical Dimensions
Length	22mm ± 0.15mm
Width	80mm ± 0.15mm
Thickness (max)	2.38mm
Weight	7.3g ± 0.5g

¹ One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes). Actual user capacity may be less due to operating environment.
² Test Conditions: Performance is based on the CrystalDiskMark 5.2.2 benchmark using a 1000MB LBA range ASUS Z170A desktop with Intel i7-6700K 4.0GHz, 8GB 2133MHz DDR4. Windows 10 Pro 64-bit using microsoft StorNVMe driver, secondary drive. Peformance may vary based on host device. 1MB = 1,000,000 bytes. IOPS = input/output operations per second.
³ TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
⁴ Measured using MobileMark 2014 on HP EliteBook X360 1030 G2 with i7-7600U, 8GB RAM. Windows 10 Pro, 64-bit RS3 using Microsoft StorNVMe driver, primary drive.
⁵ Power measurements are 25°C
⁶ MTTF = Mean Time To Failure based on internal tesing using Telcordia stress part testing. MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drive's reliability and does not constitute a warranty. (Telecordia SR-332, GB, 40°C).
⁷ Operational temperature as reported by device (composite temperature).
⁸ Non-operational storage temperature does not guarantee data retention.
⁹ 5 years or Max Endurance (TBW) limit, whichever occurs first. 5 year warranty in regions not recognizing "limited." http://support.wdc.com for more detials.

Documentation

Download the Western Digital PC SN730 NVMe SSD Datasheet (.PDF)
