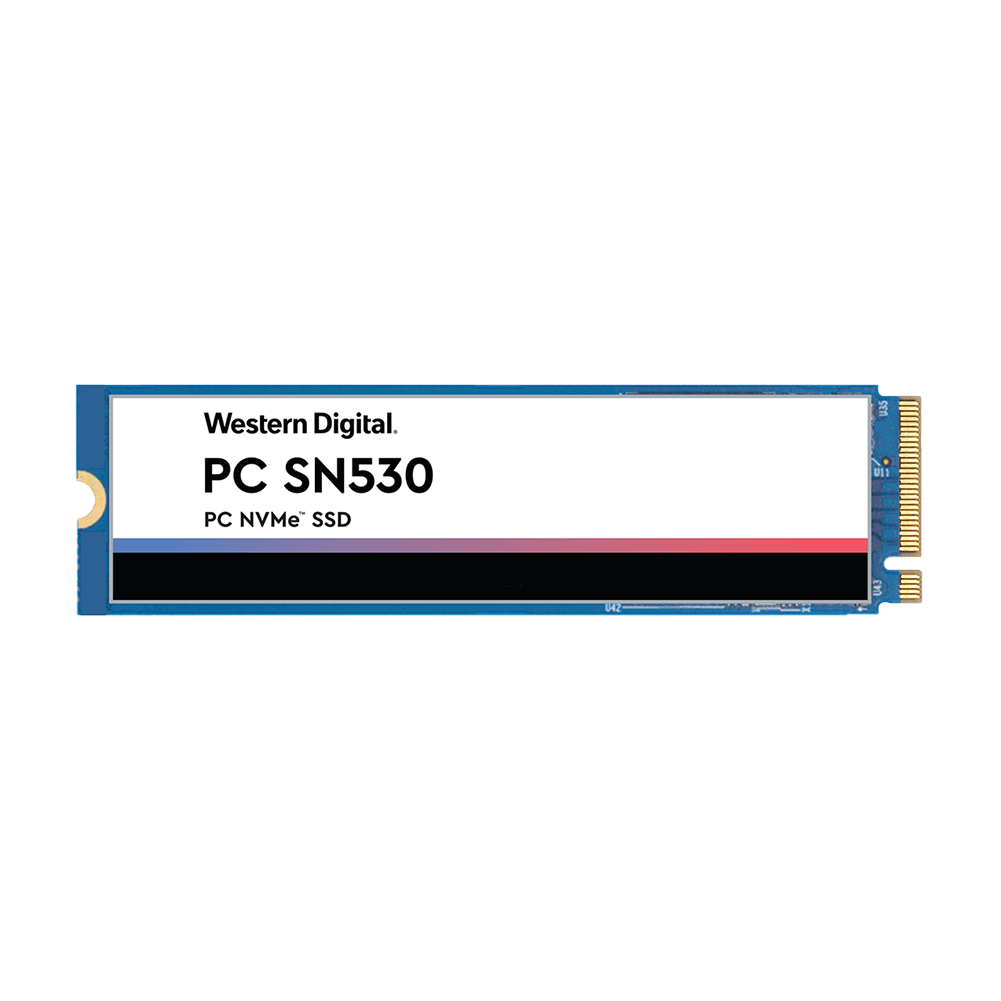

WD PC SN530 NVMe SSD
M.2 2280 NVMe Solid State Drive (SSD)

Overview

Outstanding Performance with Greater Design Flexibility

The Western Digital PC SN530 NVMe SSD is designed for a multitude of applications that require both high performance and low power. The device is not only capable of more than three times the read speed over SATA SSDs, but further optimizes the low power consumption level to a mere 5mW.

Equipped with a fully integrated solution including an in-house controller, 96-layer 3D NAND, firmware, and extensive testing, the Western Digital PC SN530 NVMe SSD provides longevity of supply in a robust and reliable design.

Applications and Workloads

• Ultra-Thin Notebooks
• Ultra-Thin Tablets
• Embedded Applications
• IoT Applications

Innovative Solution

With future-ready, scalable NVMe architecture, the Western Digital PC SN530 NVMe SSD offers both manufacturers and end-users the solution to innovate and expand their computing effectiveness. This NVMe SSD enables greater design flexibility for ultra-thin notebook or tablet designs that require a cost effective, reliable storage device with a small form factor and capacity points up to 1TB.

Versatile Options for Mobility

The Western Digital PC SN530 NVMe SSD, supporting PCIe Gen3 x4, is designed for a multitude of applications that require both high performance and low power. Equipped with a fully integrated solution which includes an in-house controller, 96-layer 3D NAND, firmware, and extensive testing, Western Digital provides longevity of supply in a robust and reliable design.

Summary

The Western Digital PC SN530 NVMe SSD, in variety of small, single-sided form factors, enables customers to build ultra-thin, ultra-small boards and systems that address the ever-changing computing platforms, without sacrificing performance and power consumption.

Specifications

¹ One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes). Actual user capacity may be less due to operating environment.
² Test Conditions: Performance is based on the CrystalDiskMark 5.2.2 benchmark using a 1000MB LBA range ASUS G752VSK. Windows 10 Pro 64-bit using microsoft StorNVMe driver, secondary drive. Peformance may vary based on host device. 1MB = 1,000,000 bytes. IOPS = input/output operations per second.
³ TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
⁴ Measured using MobileMark 2014 on HP EliteBook X360 1030 G2 with i7-7600U, 8GB RAM. Windows 10 Pro, 64-bit RS3 using Microsoft StorNVMe driver, primary drive.
⁵ Power measurements are 25°C
⁶ MTTF = Mean Time To Failure based on internal tesing using Telcordia stress part testing. MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drive's reliability and does not constitute a warranty. (Telecordia SR-332, GB, 40°C).
⁷ Operational temperature as reported by device (composite temperature).
⁸ Non-operational storage temperature does not guarantee data retention.
⁹ 5 years or Max Endurance (TBW) limit, whichever occurs first. 5 year warranty in regions not recognizing "limited." http://support.wdc.com for more detials.

Documentation

Download the Western Digital PC SN530 NVMe SSD Datasheet (.PDF)
