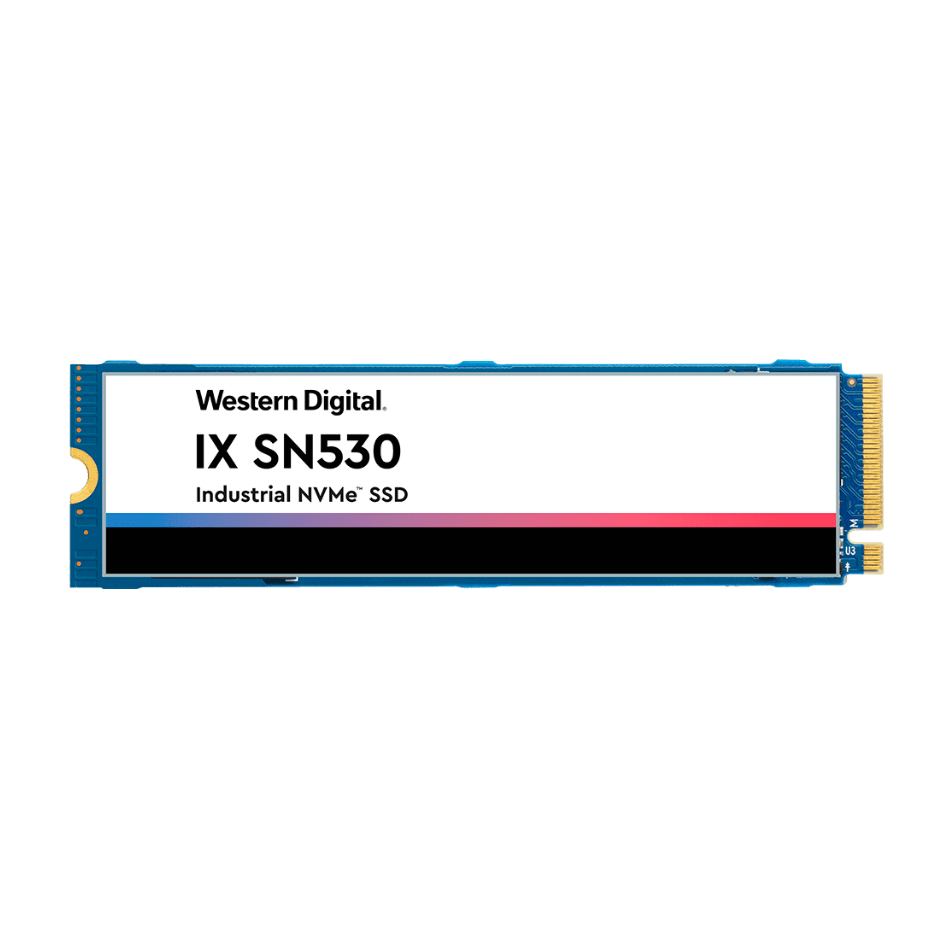

WD IX SN530 NVMe SSD
M.2 2280 NVMe Industrial-Grade Solid State Drive (SSD)

Western Digital IX SN530 Industrial NVMe SSD M.2 2280 - 85GB

#SDBPNPZ-085G-XI
Get a Quote!

Get a Quote

Form Factor

High performance at industrial-grade temperatures -40˚C to +85˚C
20G @ 7-2000Hz Operating Vibrational Frequency
Endurance projected up to 5,200 TBW (TLC) and up to 24,000 TBW (SLC)
Sequential Read speeds up to 2,400MB/s and Write speeds up to 1,950MB/s
Available in TLC and SLC configurations

Click here to jump to more pricing!

Overview

Specifications

Documentation

Overview

Enabling next generation of data-intensive industrial applications and autonomous driving designs

Built on the robust 96 layer 3D NAND architecture and leveraging the NVMe architecture, the IX SN530 introduces high performance and endurance to support break through innovation development in industrial and autonomous driving applications.

The IX SN530 features a PCIe Gen3x4 NVMe interface with industrial grade NAND to provide extended operating temperature ranges and endurance. Designed to provide versatility and value across multiple capacities, M.2 2230 and 2280 form factors and the choice of SLC or TLC configurations to bring the latest in robust and long-life design to the industrial space.

Applications and Workloads

Robotics
Industrial PCs
Factory Automation
Digital Signage
Fanless designs
Networking equipment
In-flight entertainment systems
IoT Edge Gateways
Data logging for autonomous driving system
Boot device for automobile systems
Data recording and mobile DVRs for public transportation

Built for Extreme Conditions

The IX SN530 supports a wide range of environmental conditions, including operating temperatures and shock and vibration, which allow it to be used in systems placed in various physical locations in a vehicle or other equipment, enabling placement flexibility for system designers.

Robust and Reliable Design

A fully vertically integrated solid state drive, the IX SN530 is built with Western Digital’s 96-layer 3D NAND technology, in-house controller and firmware development, internal validation and qualification, and extensive testing; making it ideal for handling a wide variety of industrial and automotive use cases. In addition, Western Digital supports five-year longevity with controlled bill-of-material and provides product change notifications, for customers’ peace of mind.

Further, by offering SLC configurations, the IX SN530 supports write-intensive applications, such as data recorder and data set management, saving the need to use multiple high-capacity TLC devices by delivering 9 times the TLC endurance and up to 5 times the TLC sustained write performance.

Gearing Up with NVMe SSDs

The IX SN530 is available in two M.2 form factors—a compact M.2 2230 and M.2 2280— addressing a variety of system designs and mechanical constraints. This compact solution helps to reduce maintenance costs and enhance serviceability, making the transition to industrial-grade PCIe NVMe SSDs easier.

Operating Temperatures

Today’s technology must be able to operate within a wide range of temperatures. The latest in industrial technologies it is designed for the elements ranging from summer heatwaves to winter snowstorms and the data gathered by these systems is expected to survive these harsh conditions. The new IX SN530 NVMe SSD wide operating temperature support (-40˚C to +85˚C) allows designers to worry less about the need to keep the storage device cool or warm so that they can design their latest innovations with the utmost confidence and flexibility.

Built for Rugged and Extreme Conditions

The IX SN530 is designed to not only operate in a wider range of temperatures, but also to withstand more extreme conditions by having shock resistance of 1,500G at 0.5msec and vibration resistance of forces of 20G at 7Hz to 2,000Hz. Combined with projected endurance of up to 24,000 TBW for supporting write intensive applications, the IX SN530 is ideal for systems placed in remote, hard to access locations, where conditions can change without warning.

Endurance

For write intensive applications, such as data recorder, “black box” and data logging, the IX SN530 SLC option, with endurance of up to up to 24,000 TBW (projected) and sustained sequential write performance of up to 1,950 MB/s, saves the need to use multiple high-capacity TLC devices by delivering 9 times the TLC endurance and up to 5 times the TLC sustained write performance.

In-house Robust Design

The IX SN530 is a Western Digital fully vertically integrated storage solution. From the 96 Layer 3D NAND, in house controller and firmware, to internal validation and qualification. Enabling the high quality and reliability expected of an Industrial grade SSD.

Performance to Match Rugged Demands

Using PCIe Gen 3x4, the IX SN530 delivers incredible speeds to meet the growing performance requirements of Industrial IoT systems. With sequential read speeds of up to 2,400 MB/s and write speeds of up to 1,950 MB/s, the IX SN530 matches its toughness with speed.

NVMe SSDs Provide Options

With two form factors, M.2 2280 and M.2 2230, the IX SN530 provides flexibility for the design and mechanical constraints system designers may encounter when considering high capacity storage solutions.

Specifications

Formatted Capacity²	85GB	170GB	340GB	256GB	512GB	1TB	2TB
Form Factor	M.2 2280-S3-M
Interface¹	PCIe Gen3 x4 NVMe v1.4
3D NAND flash	SLC 96-layer			TLC 96-layer
Performance
Sequential Read up to (MB/s)	2,400	2,400	2,400	2,400	2,400	2,400	2,400
Burst Sequential Write up to (MB/s)⁴	900	1,750	1,950	900	1,750	1,950	1,800
Sustained Sequential Write up to (MB/s)³	900	1,750	1,950	140	280	540	525
Random Read up to (IOPS)³	160K	310K	410K	160K	310K	410K	370K
Random Write up to (IOPS)³	180K	330K	350K	85K	150K	350K	300K
Power
Average Power⁵	3.3W	3.3W	3.5W	3.5W	3.5W	3.5W	3.9W
Peak Power⁶	5.5W	5.5W	5.5W	5.5W	5.5W	5.5W	5.5W
Reliability
Endurance (TBW)⁷ (projected)	6,000	12,000	24,000	650	1,300	2,600	5,200
Mean Time To Failure (MTTF)⁸ (Hours) (projected)	3,000,000
Unrecoverable Bit Error Rate (UBER)	1 error per 10¹⁶ bits read
Data Retention (EOL)	1 year at +55°C
Environmental
Operating Temperatures⁹	-40°C to 85°C
Non-operating Temperatures	-40°C to 95°C
Operating Vibration	20GRMS, 7 to 2,000Hz, 30min/axis on 3 axes
Shock	1,500G, 0.5ms Half Sine pulse duration
Altitude	-1500ft (-457m) to 40,000ft (12,192m)
Certifications	FCC, CE, UL, TUV, BSMI, KCC, RCM, Morocco, VCCI and CAN ICES-3(B)/NMB-3(B)
Physical Dimensions
Weight typical	7.5mm ± 1.0
Width	22mm ± 0.15
Length	80mm ± 0.15
Thickness maximum	2.38mm

¹ PCI Express 3.0 up to four lanes, and a bit rate of 2.5Gbps or 5Gbps or 8Gbps. Configurable lane width: x1, x2 and x4. NVM Express version 1.4
² The capacities are based on IDEMA Standard LBA 1-03. One megabyte is equal to one billion bytes, one gigabyte (GB) is equal to one billion bytes and one terabyte (TB) is equal to one trillion bytes. Actual user capacity may be less due to operating environment. 2TB is supported by M.2 2280 form factor only.
³ Test Conditions: burst performance is measured by CrystalDiskMark 6.0.0, using 1000MB LBA range as a secondary drive in desktop with Intel® Core™ i7 7700 CPU, 8GB RAM. OS: Windows 10 Pro 64-bit 20H1 19041.208 with Microsoft StorNVMe driver. Sequential read performance refers for both burst and sustained specifications.
⁴ Test Conditions: sustained sequential performance is measured by FIO 1.97, using 100% LBA range as a secondary drive in Dell Precision 7820, with Intel Xeon Silver 4208 CPU, 16GB RAM. OS: Cent OS 8, Kernel 4.18.0-193.6.3.el8_2.x86_64.
⁵ Average maximum power is measured while the SSD is continuously processing sequential read and write commands for at least 10 seconds, with a transfer size of 128KB per command, QD= 32 and 1 thread. Sampling interval is 1 second. Measured at 25°C and can vary due to input voltage and ambient temperature variation.
⁶ Peak power is the maximum instantaneous power consumption measured while the SSD is continuously processing commands for at least 10 seconds, with a transfer size of 128KB per command, QD=32 and 1 thread. The sampling interval is 10μs. Measured at 25°C and can vary due to input voltage and ambient temperature variation.
⁷ TBW = Terabytes Written. Projected endurance is calculated based on sustained sequential write operation without frequent idle.
⁸ Based on Western Digital’s internal calculation, using a prediction methodology in accordance with the Telcordia Special Report SR-332. The prediction is based on a Parts Stress Analysis, performed at a temperature of 40°C in a GB (ground, benign) environment with duty cycle of 12 hours per day.
⁹ Operational temperature is defined such as -40°C refers to ambient temperature. +85°C refers to NAND BGA case temperature. When SMART composite temperature reported by the drive exceeds 85°C, thermal throttling will be initiated.
