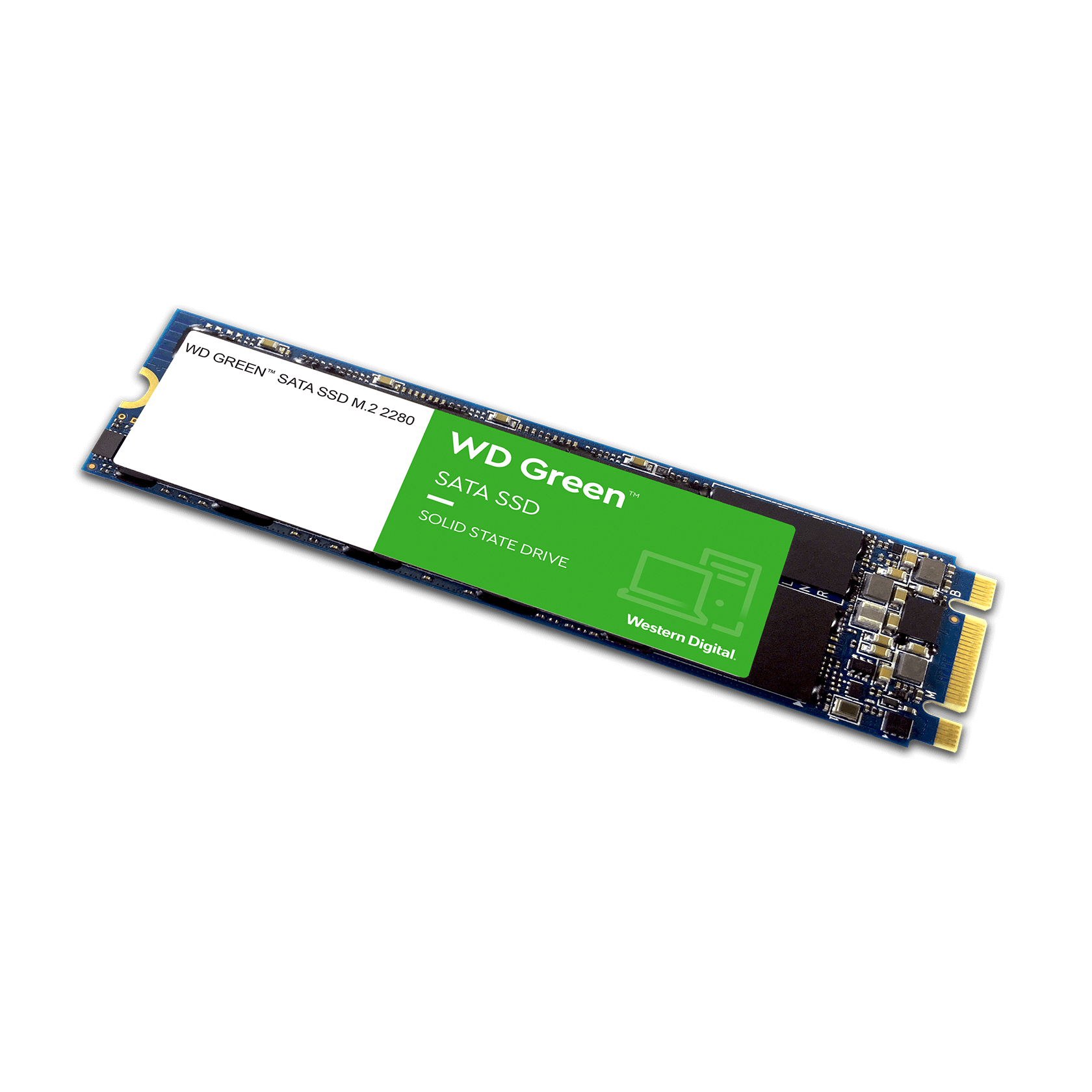

WD Green SATA SSD
M.2 2280 SATA Solid State Drive (SSD)
WD Green SATA SSD M.2 2280 - 120GB
Our Price: $29.99
- SLC (single-level cell) caching boosts write performance to quickly perform everyday tasks.
- Shock-resistant and WD F.I.T. Lab certified for compatibility and reliability.
- Ultra-low power-draw so you can use your laptop PC for longer periods of time.
- The free, downloadable Western Digital SSD Dashboard monitors the health and usage of your drive
- Includes a 3-year limited warranty so upgrading your storage is worry-free.
Accelerate everyday tasks with an M.2 SATA SSD
For use in laptops and desktop computers, WD Green SATA SSDs offer high performance and reliability to boost your daily computing activities. With comprehensive WD F.I.T. Lab certification, and available in 2.5”/7mm cased or M.2 2280 models, WD Green SATA solid state drives are compatible with most PCs. You can store with confidence thanks to the 3-year limited warranty, and get even more peace of mind and control by monitoring your storage with the free Western Digital SSD Dashboard.
Apps Launch Fast
Applications you use every day launch quickly when you use an m.2 WD Green SATA SSD – giving you the boost to work faster and more efficiently.
Revive Your PC
Adding a WD Green M.2 SATA SSD to your laptop or desktop PC can boost your startup times and accelerate your applications.
Reliable Solid State Technology
WD Green SSDs help keep your data safe – solid state technology requires no moving internal parts.
Download the free WD SSD Dashboard to keep up-to-date with your drive’s health, or download and install Acronis True Image WD Edition to safely clone your old drive to a new WD SSD.
Low Power is Good.
WD Green SSDs draw low amounts of power from your system - and that’s a good thing for the battery life in laptop and mobile devices.
3-Year Limited Warranty
WD Green SSDs include a 3-year limited warranty, for years of trusted data and storage expertise from WD.
|Form Factor M.2 2280||WDS480G2G0B||WDS240G2G0B||WDS120G2G0B|
|Interface||SATA III 6 Gb/s||SATA III 6 Gb/s||SATA III 6 Gb/s|
|Performance4 [4KB QD32]|
|Sequential Read up to (MB/s)||545MB/s||545MB/s||545MB/s|
|Power5||Avg. Active Power||80||80||80|
|Max Read Operating||2,800||2,800||2,200|
|Max Write Operating||2,800||2,800||2,200|
|MTTF6||Up to 1.0M hours||Up to 515K hours||Up to 1.0M hours|
|Operating Temperatures||32°F to 158°F (0°C to 70°C)|
|Non-operating Temperatures||-67°F to 185°F (-55°C to 85°C)|
|Operating Vibration||5.0 gRMS, 10–2000 Hz|
|Non-operating Vibration||4.9 gRMS, 7–800 Hz|
|Shock||1,500 G @ 0.5 msec half sine|
|Certifications||FCC, UL, TUV, KC, BSMI, VCCI, CE, Morocco, RCM, UKCA|
|Limited Warranty||3 years|
|Size||80mm x 22.0mm x 1.5mm|
|Weight||6.52g, ± 0.5g||6.51g, ± 0.5g||6.46g, ± 0.5g|
1 Backwards compatible to SATA II and I.
2 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 6 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
3 Test Conditions: Performance is based on the CrystalDiskMark 7.0.0f benchmark using a 1000MB LBA range ASUS Z170A desktop with Intel i7-6700K 4.0Ghz, 8GB 2133MHz DDR4. Windows 10 Pro 64-bit version 1903 using Microsoft StorNVMe driver, secondary drive. Performance may vary based on host device. 1 MB = 1,000,000 bytes. IOPS = input/output operations per second..
4 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
5 Power measurements at 25°C. Based on firmwave version with DIPM enabled. Measured using MobileMark 2014 on Lenovo T560, Intel Core i5-6200U 2.30GHz Processor, DDR3L 4GB 1600MHz RAM, Windows 10 with Intel Driver iRST 18.104.22.1682.
6 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing (Telcordia SR-332, GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drive’s reliability and does not constitute a warranty.
7 Operational temperature is measured by an on board temperature sensor. The SSD box package is rated up to 60C°.
Download the WD Blue SATA SSD Datasheet (.PDF)
