WD Blue SATA SSD
M.2 2280 SATA Solid State Drive (SSD)

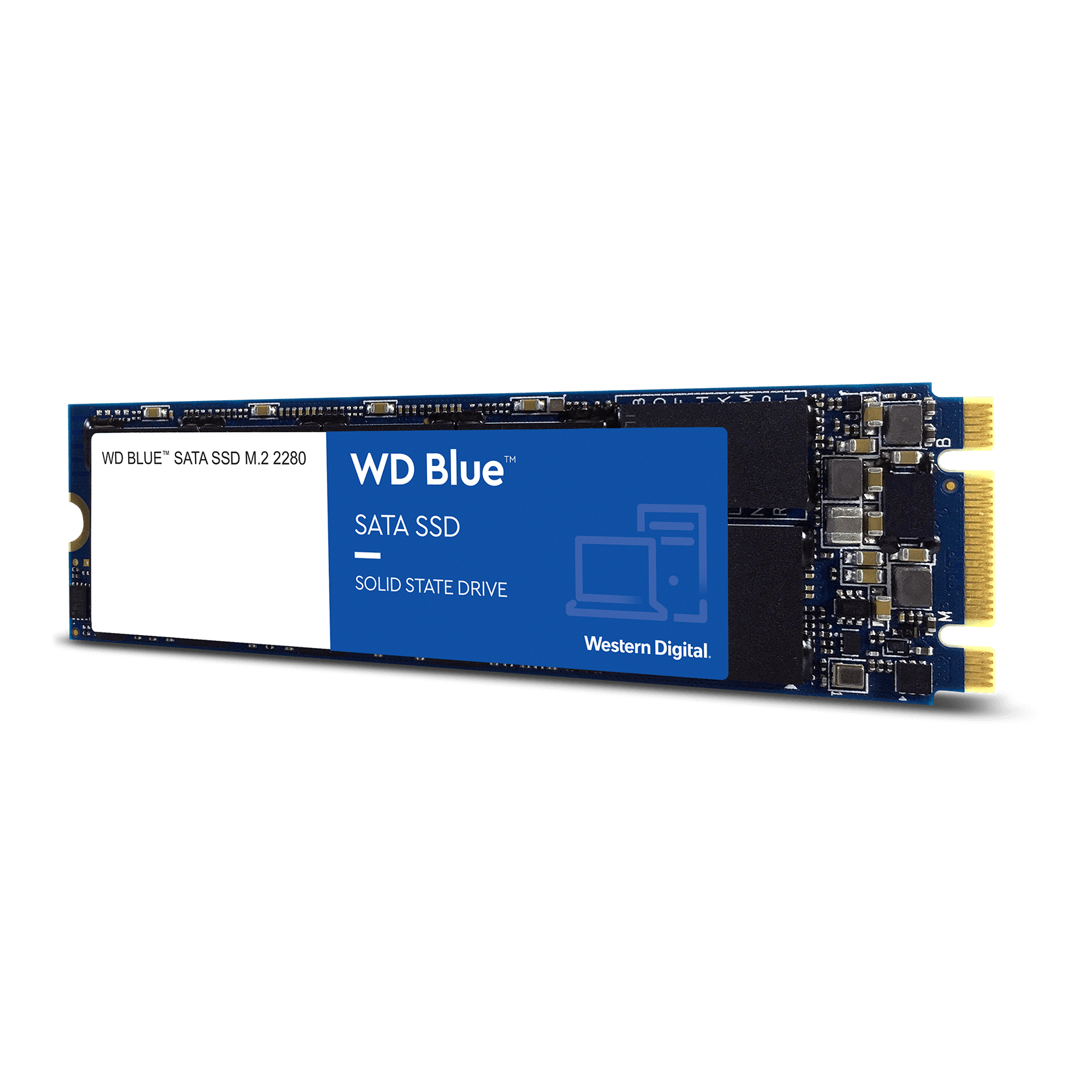

WD Blue SATA SSD M.2 2280 - 250GB
Our Price: $56.99
- Sequential read speeds up to 560MB/s and sequential write speeds up to 530MB/s.
- An idustry-leading 1.75M hours mean time to failure (MTTF) and up to 600 terabytes written (TBW) for enhanced reliability
- WD F.I.T. Lab certification for compatibility with a wide range of computers.
- Free downloadable software to monitor the status of your drive and clone a drive, or backup your data.
- Includes a 5-year limited warranty so upgrading your storage is worry-free.
Click here to jump to more pricing!
3D Technology comes to SSD
The WD Blue SATA SSD utilizes Western Digital 3D NAND technology for capacities up to 2TB in the M.2 2280 form factor with enhanced reliability. With sequential read speeds up to 560MB/s and sequential write speeds up to 530MB/s you get the speed you want for your most demanding computing applications. Combined with the free, downloadable WD SSD Dashboard software and a 5-year limited warranty, you can confidently upgrade your system to the WD Blue SATA SSD.
Reliable SSD Storage
A WD Blue SATA Internal SSD can last up to 1.75M hours MTTF2 (mean time to failure), with up to 600 TBW3 (terabytes written), and has built in technology to correct errors in real time.
Compatible and Compact
The ultra-compact M.2 2280 WD Blue SATA SSD Drive goes through extensive compatibility and reliability testing to ensure it meets the high standards of the WD brand.
Reliable Solid State Technology
WD Blue Internal SSDs boost a variety of computing applications like gaming, HD media playback, or creative software.
Download the free WD SSD Dashboard to keep up-to-date with your drive’s health, or download and install Acronis True Image WD Edition to safely clone your old drive to a new WD SSD.
Fast Solid State Performance
Western Digital technology helps enable sequential read speeds up to 560MB/s and sequential write speeds up to 530MB/s for fast system boot-ups, quick application responses, and rapid transfer speeds.
5-Year Limited Warranty
Western Digital Blue SSDs include a 5-year limited warranty, so you can confidently trust WD for years of data storage expertise.
1 As used for storage capacity, one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
2 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing.
3 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
|Form Factor 2.5”/7mm cased||WDS200T2B0B||WDS100T2B0B||WDS500G2B0B||WDS250G2B0B|
|Interface||SATA III 6 Gb/s||SATA III 6 Gb/s||SATA III 6 Gb/s||SATA III 6 Gb/s|
|Performance3 [4KB QD32]|
|Sequential Read up to (MB/s)||560||560||560||550|
|Sequential Write up to (MB/s)||530||530||530||525|
|Random Read up to (IOPS)||95K||95K||95K||95K|
|Random Write up to (IOPS)||84K||84K||84K||81K|
|Avg. Active Power||60||60||52||52|
|Max Read Operating||3,000||2,550||2,050||2,200|
|Max Write Operating||3,800||3,750||3,350||2,250|
|MTTF6||Up to 1,750,000 hours|
|Operating Temperatures||32°F to 158°F (0°C to 70°C)|
|Non-operating Temperatures||-67°F to 185°F (-55°C to 85°C)|
|Operating Vibration||5.0 gRMS, 10–2000 Hz|
|Non-operating Vibration||4.9 gRMS, 7–800 Hz|
|Shock||1,500 G @ 0.5 msec half sine|
|Certifications||FCC, UL, TUV, KC, BSMI, VCCI, Morocco|
|Limited Warranty||5 years|
|Size||80.0mm x 22.0mm x 2.38mm|
|Weight||7g ± 1g||7g ± 1g||7g ± 1g||7g ± 1g|
1 Backwards compatible to SATA II and I.
2 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 6 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
3 Test Conditions: Performance is based on the CrystalDiskMark 7.0.0f benchmark using a 1000MB LBA range ASUS Z170A desktop with Intel i7-6700K 4.0Ghz, 8GB 2133MHz DDR4. Windows 10 Pro 64-bit version 1903 using Microsoft StorNVMe driver, secondary drive. Performance may vary based on host device. 1 MB = 1,000,000 bytes. IOPS = input/output operations per second..
4 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
5 Power measurements at 25°C. Based on firmwave version with DIPM enabled. Measured using MobileMark 2014 on Lenovo T560, Intel Core i5-6200U 2.30GHz Processor, DDR3L 4GB 1600MHz RAM, Windows 10 with Intel Driver iRST 18.104.22.1682.
6 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing (Telcordia SR-332, GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drive’s reliability and does not constitute a warranty.
7 Operational temperature is measured by an on board temperature sensor. The SSD box package is rated up to 60C°.
Download the WD Blue SATA SSD Datasheet (.PDF)
