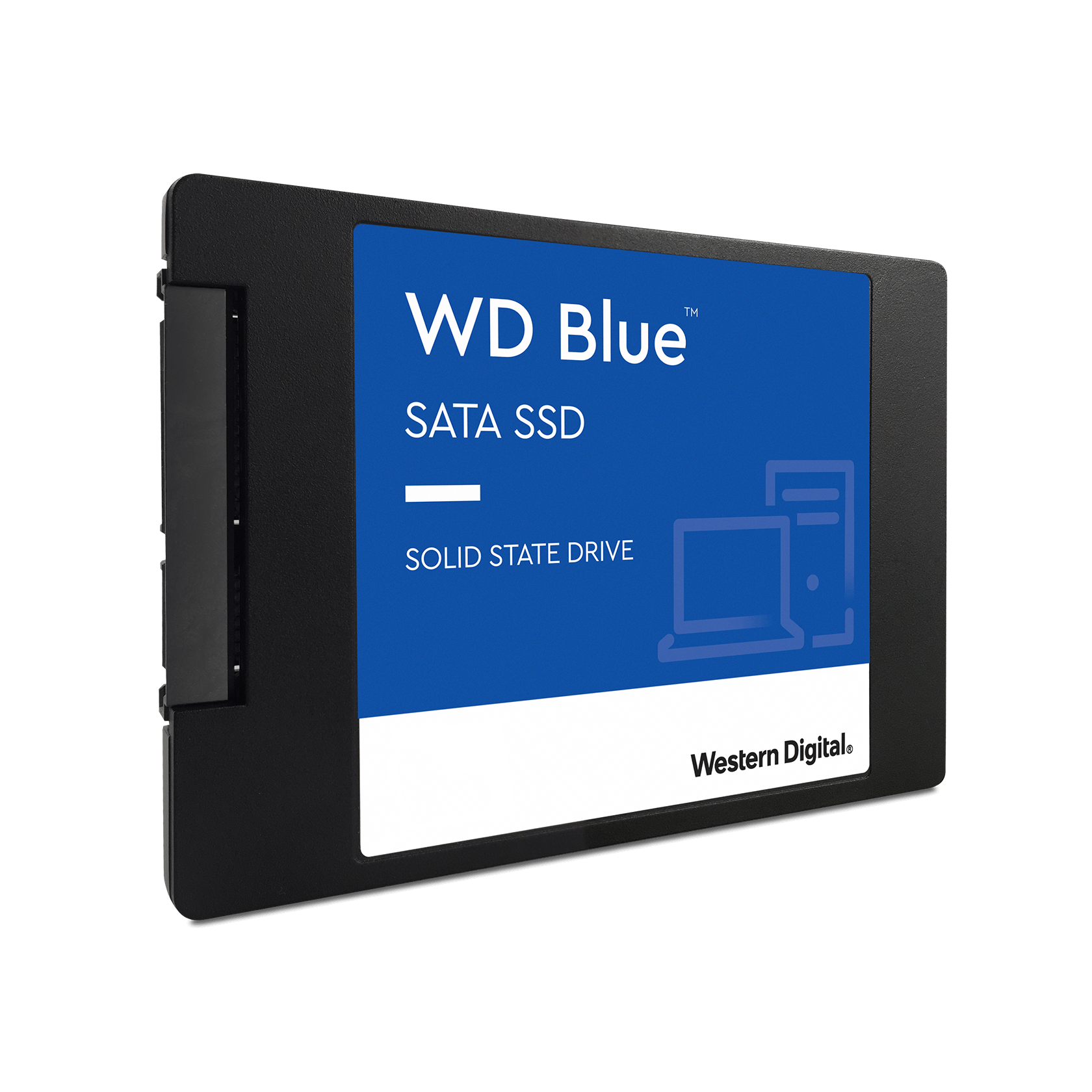

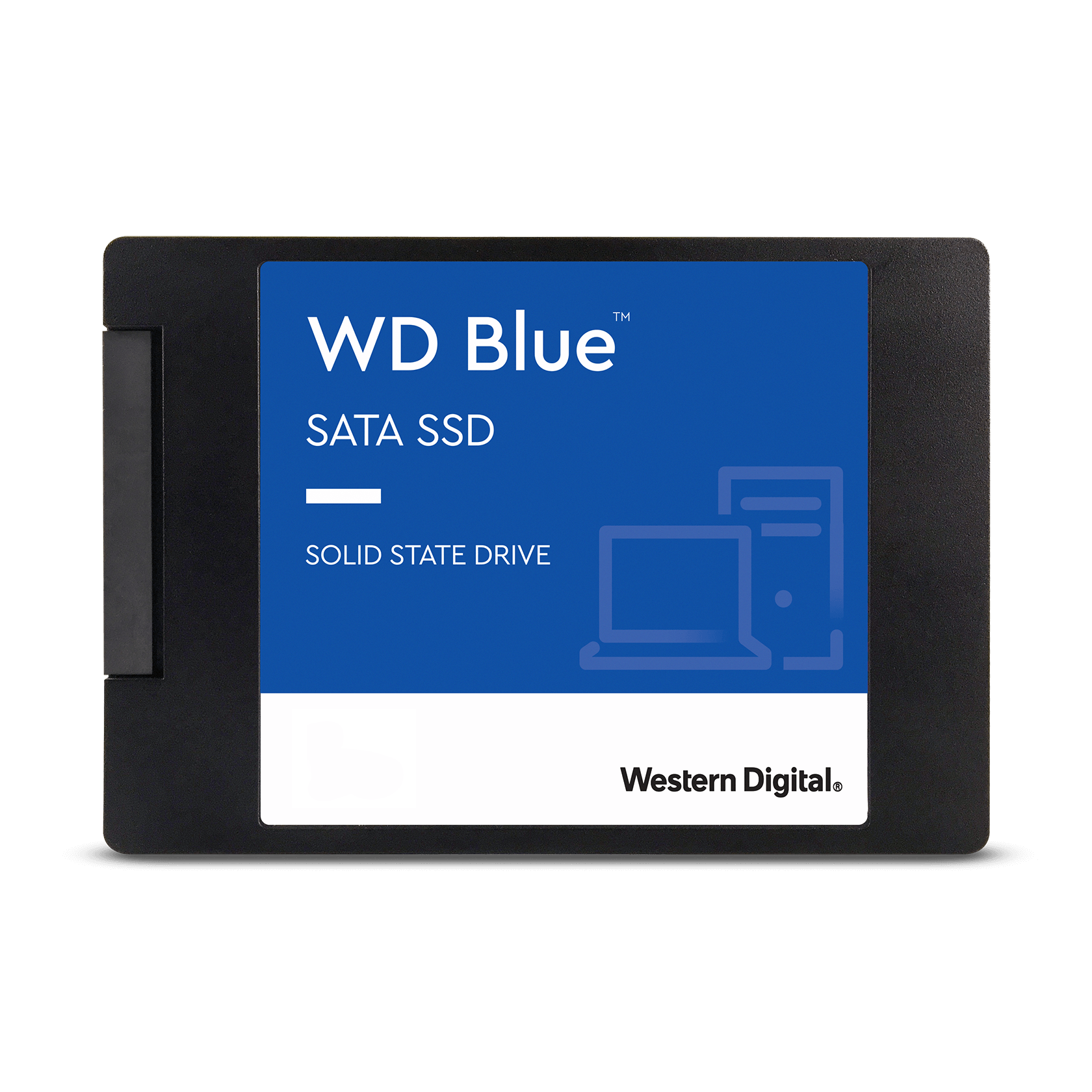

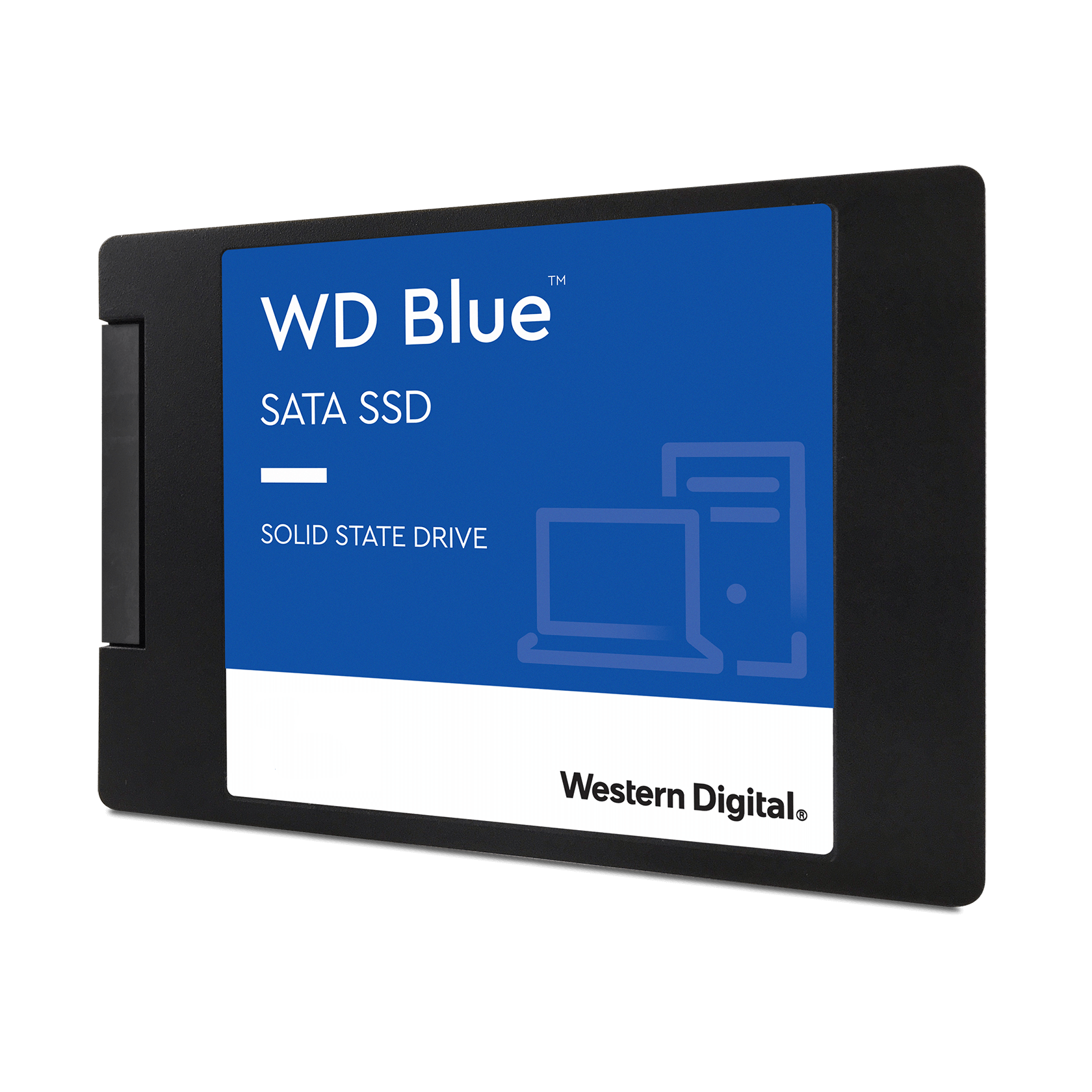

WD Blue SATA SSD
2.5-inch/7mm cased SATA Solid State Drive (SSD)
WD Blue SATA SSD 2.5�/7mm cased - 250GB
Our Price: $56.99
- Sequential read speeds up to 560MB/s and sequential write speeds up to 530MB/s.
- An idustry-leading 1.75M hours mean time to failure (MTTF) and up to 600 terabytes written (TBW) for enhanced reliability
- WD F.I.T. Lab certification for compatibility with a wide range of computers.
- Free downloadable software to monitor the status of your drive and clone a drive, or backup your data.
- Includes a 5-year limited warranty so upgrading your storage is worry-free.
Click here to jump to more pricing!
A New Dimension of Storage
The WD Blue SATA SSD utilizes Western Digital 3D NAND technology for capacities up to 4TB in the 2.5" 7mm form factor with enhanced reliability. With sequential read speeds up to 560MB/s and sequential write speeds up to 530MB/s you get the speed you want for your most demanding computing applications. Combined with the free, downloadable WD SSD Dashboard software and a 5-year limited warranty, you can confidently upgrade your system to the WD Blue SATA SSD.
High Capacity With Enhanced Reliability
A Western Digital Blue SATA SSD drive uses technology not only for higher capacities (up to 4TB in the 2.5" 7mm form factor1) than the previous generation WD Blue SSDs, but also to help reduce cell-to-cell interference for enhanced reliability.
The ultra-compact M.2 2280 WD Blue SATA SSD Drive goes through extensive compatibility and reliability testing to ensure it meets the high standards of the WD brand.
2.5 SSD is designed with no moving parts to help protect against data loss if it is accidentally bumped or dropped. And with 1.75M hours MTTF (mean time to failure)2, up to 600 TBW (terabytes written)3, and several error correction technologies, WD Blue SATA SSDs can help guard data for years to come.
Downloadable WD SSD Dashboard and Acronis Software
Monitor your drive’s available capacity, operating temperatures, SMART attributes and more with the WD SSD Dashboard. Acronis True Image WD Edition software, available as a free download, can clone drives and backup your operating system, applications, settings and all of your data.
Technology enables Sequential Read Speeds up to 560MB/s and Sequential Write Speeds up to 530MB/s.
5-Year Limited Warranty
Every WD Blue SATA SSD drive comes with a 5-year limited warranty, so you can be confident of your storage when you upgrade or replace any of your drives.
1 As used for storage capacity, one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment.
2 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing.
3 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
|Form Factor 2.5”/7mm cased||WDS400T2B0A||WDS200T2B0A||WDS100T2B0A||WDS500G2B0A||WDS250G2B0A|
|Interface||SATA III 6 Gb/s||SATA III 6 Gb/s||SATA III 6 Gb/s||SATA III 6 Gb/s||SATA III 6 Gb/s|
|Performance3 [4KB QD32]|
|Sequential Read up to (MB/s)||560||560||560||560||550|
|Sequential Write up to (MB/s)||530||530||530||530||525|
|Random Read up to (IOPS)||95K||95K||95K||95K||95K|
|Random Write up to (IOPS)||82K||84K||84K||84K||81K|
|Avg. Active Power||60||60||60||52||52|
|Max Read Operating||3,000||3,000||2,550||2,050||2,200|
|Max Write Operating||3,800||3,800||3,750||3,350||2,250|
|MTTF6||Up to 1,750,000 hours|
|Operating Temperatures||32°F to 158°F (0°C to 70°C)|
|Non-operating Temperatures||-67°F to 185°F (-55°C to 85°C)|
|Operating Vibration||5.0 gRMS, 10–2000 Hz|
|Non-operating Vibration||4.9 gRMS, 7–800 Hz|
|Shock||1,500 G @ 0.5 msec half sine|
|Certifications||FCC, UL, TUV, KC, BSMI, VCCI, Morocco|
|Limited Warranty||5 years|
|Size||100.2mm x 69.85mm x 7.00mm|
1 Backwards compatible to SATA II and I.
2 As used for storage capacity, one megabyte (MB) = one million bytes, one gigabyte (GB) = one billion bytes, and one terabyte (TB) = one trillion bytes. Total accessible capacity varies depending on operating environment. As used for buffer or cache, one megabyte (MB) = 1,048,576 bytes. As used for transfer rate or interface, megabyte per second (MB/s) = one million bytes per second, and gigabit per second (Gb/s) = one billion bits per second. Effective maximum SATA 6 Gb/s transfer rate calculated according to the Serial ATA specification published by the SATA-IO organization as of the date of this specification sheet. Visit www.sata-io.org for details.
3 Test Conditions: Performance is based on the CrystalDiskMark 7.0.0f benchmark using a 1000MB LBA range ASUS Z170A desktop with Intel i7-6700K 4.0Ghz, 8GB 2133MHz DDR4. Windows 10 Pro 64-bit version 1903 using Microsoft StorNVMe driver, secondary drive. Performance may vary based on host device. 1 MB = 1,000,000 bytes. IOPS = input/output operations per second..
4 TBW (terabytes written) values calculated using JEDEC client workload (JESD219) and vary by product capacity.
5 Power measurements at 25°C. Based on firmwave version with DIPM enabled. Measured using MobileMark 2014 on Lenovo T560, Intel Core i5-6200U 2.30GHz Processor, DDR3L 4GB 1600MHz RAM, Windows 10 with Intel Driver iRST 184.108.40.2062.
6 MTTF = Mean Time To Failure based on internal testing using Telcordia stress part testing (Telcordia SR-332, GB, 25°C). MTTF is based on a sample population and is estimated by statistical measurements and acceleration algorithms. MTTF does not predict an individual drive’s reliability and does not constitute a warranty.
7 Operational temperature is measured by an on board temperature sensor. The SSD box package is rated up to 60C°.
Download the WD Blue SATA SSD Datasheet (.PDF)
- Pricing and product availability subject to change without notice.
Our Price: $56.99
Our Price: $69.99
Our Price: $109.99
Our Price: $229.99
Our Price: $449.99
