Ultrastar DC SA210
M.2 2280 SATA Data Center Solid State Drive (SSD) for Boot and Edge Applications

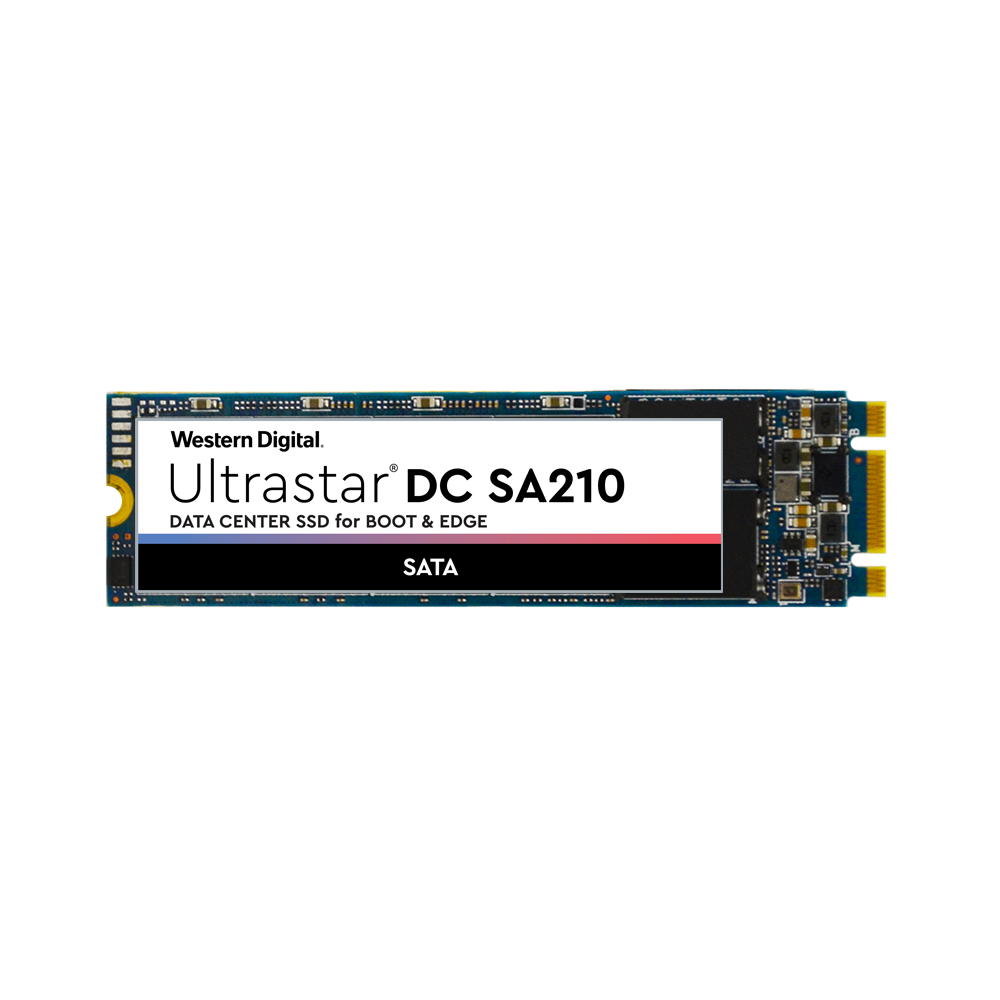

Ultrastar DC SA210 M.2 2280 SATA Solid State Drive - 120GB

#HBS3A1912A4M4B1
Get a Quote!

Get a Quote

Form Factor

Enterprise-grade SATA 6Gb/s SSD designed specifically for boot & edge applications
Capacity points of 120GB to 1.92TB in a M.2 2280 form factor
2 million hours MTBF
Self-encrypting with TCG OPAL 2.01 SSC security protocol support and Instant Secure Erase
5-year limited warranty

Click here to jump to more pricing!

Overview

A Natural Western Digital Drive for Edge Computing & Read-intensive Environments

Built on Western Digital 64-layer 3D NAND, the Ultrastar DC SA210 SATA SSD is Western Digital’s first SSD purpose-built for enterprise boot and edge applications.

Applications and Workloads

Enterprise Boot
Video Streaming, Video-on-Demand
Audio Streaming
File Servers
Read-intensive Applications

The Right Choice for Server Boot Drives

Built on Western Digital 64-layer 3D NAND, the Ultrastar DC SA210 SATA SSD is Western Digital’s first SSD purpose-built for enterprise boot and edge applications. The Ultrastar DC SA210 offers outstanding value and provides the best alternative to enterprise boot HDDs. With capacities as low as 120GB and up to 1.92TB, you can choose the right capacity point for your operating system and logging requirements. End-to-end data protection and LDPC error correction mechanisms provide greater reliability and help support a five-year warranty. Ultrastar DC SA210 has been validated to operate with Windows Server 2012/2016 and various versions of the enterprise Linux operating systems.

A Natural SSD for Edge Computing & Read-intensive Environments

Edge computing is pushing applications, like content delivery, away from centralized data centers and closer to those who are consuming the content. In such environments, data access speed is essential. The Ultrastar DC SA210 delivers up to 510MiB/s sequential read throughput and 64K IOPS random read performance to unleash the full potential of your server grade system and its high-end CPU capabilities. Such applications can also benefit from higher capacity offerings.

The Ultrastar DC SA210 is designed to be cost-optimized and offer sufficient endurance for read-intensive environments. It is architected to minimize the probability of data loss due to unexpected power loss yet still be a cost-effective alternative to traditional enterprise SSDs that rely on costly hold-up capacitors.

To address encryption requirements, the Ultrastar DC SA210 supports self-encryption drive (SED) capability with TCG OPAL 2.01 SSC security protocol support to help protect data from unauthorized access. The DC SA210 also includes Instant Secure Erase functionality to speed and simplify drive redeployment and retirement.

Features and Benefits

	Features	Benefits
Performance	Optimized performance for read-intensive applications	Increased lifecycle, reducing total cost of ownership
Reliability	LDPC error correction mechanisms and data path protection	Adds additional reliability to your data
Rigorous Testing	Server & software interoperability	Western Digital system integration testing ensures quality and broad platform compatibility
Security	SED functionality	TCG Opal 2.0.1 support and Instant Secure Erase help keep your data safe

Specifications

	2.5-inch	M.2 2280
Configuration
Interface	SATA 6Gb/s
Capacity¹	1.92TB, 960GB, 480GB, 240GB, 120GB
Form Factor	2.5-inch	M.2 2280
Endurance² (Drive Writes per Day (DW/D))	0.1 (JESD219 Workload) 0.7 (128KiB Sequential Workload)
Maximum Terabytes Written (TBW, JESD219 workload)	1.92TB: 350 / 960GB: 175 / 480GB: 87 / 240GB: 43 / 120GB: 21
Flash Memory Technology	3D TLC NAND
Sustained Performance³
Sequential Read (max MiB/s, 128KiB, QD32)	510	510
Sequential Write (max MiB/s, 128KiB, QD32)	475	475
Random Read (max IOPS, 4KiB, QD32)	64K	64K
Random Write (max IOPS, 4KiB, QD32)	5K	5K
Mixed Random Read/Write (max IOPS) - 70%R/30%W, 4KiB, QD32	11K	11K
Mixed Random Read/Write (max IOPS) - 90%R/10%W, 4KiB, QD32	21K	21K
Latency (ms, 4KiB Random Read QD1, typical)	0.15	0.15
Reliability
Unrecoverable Bit Error Rate (UBER)	1 in 10¹⁵	1 in 10¹⁵
MTBF⁴	2M hours	2M hours
Annual Failure Rate (AFR)	0.44%	0.44%
Data Retention	3-month at 40°C	3-month at 40°C
Limited Warranty⁵	5 years
Power
Requirement (DC +/- 5%)	5V	3.3V
Active (max)	3.8 (write), 2.65 (read)	3.8 (write), 3 (read)
Idle	0.43	0.43
Environmental
Operating Temperature	0° to 70°C	0° to 70°C
Non-operating Temperature	-55° to 85°C	-55° to 85°C
Physical Dimensions
z-height (max)	7.0 mm	<1.92TB: 2.23 1.92TB: 2.38
Dimensions (width x depth, mm)	69.85 x 100.2 mm	22 x 80 mm
Weight (max)	<960GB: 37.4 g 960GB: 59.7 g	7 g

¹ One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes). Actual user capacity may be less due to operating environment.
² Endurance rating based on DW/D over 5 years
³ Performance will vary by capacity point, or with the changes in useable capacity. Consult product manual for further details. All performance measurements are in full sustained mode and are peak values. Preliminary and subject to change. 1MiB=1,048,576 bytes or 220, 1KiB = 1,024 bytes or 210.
⁴ MTBF and AFR specifications are based on a sample population and are estimated by statistical measurements and acceleration algorithms under typical operating conditions for this drive model. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.
⁵Warranty, DW/D is the lesser of 5 years from the date of manufacture of the product or expiration of the relevant endurance threshold
⁶ Operating temperature is defined as temperature reported by the drive. Note that drive temperature readings are expected to be higher than ambient temperature when the SSD is placed inside a system.
