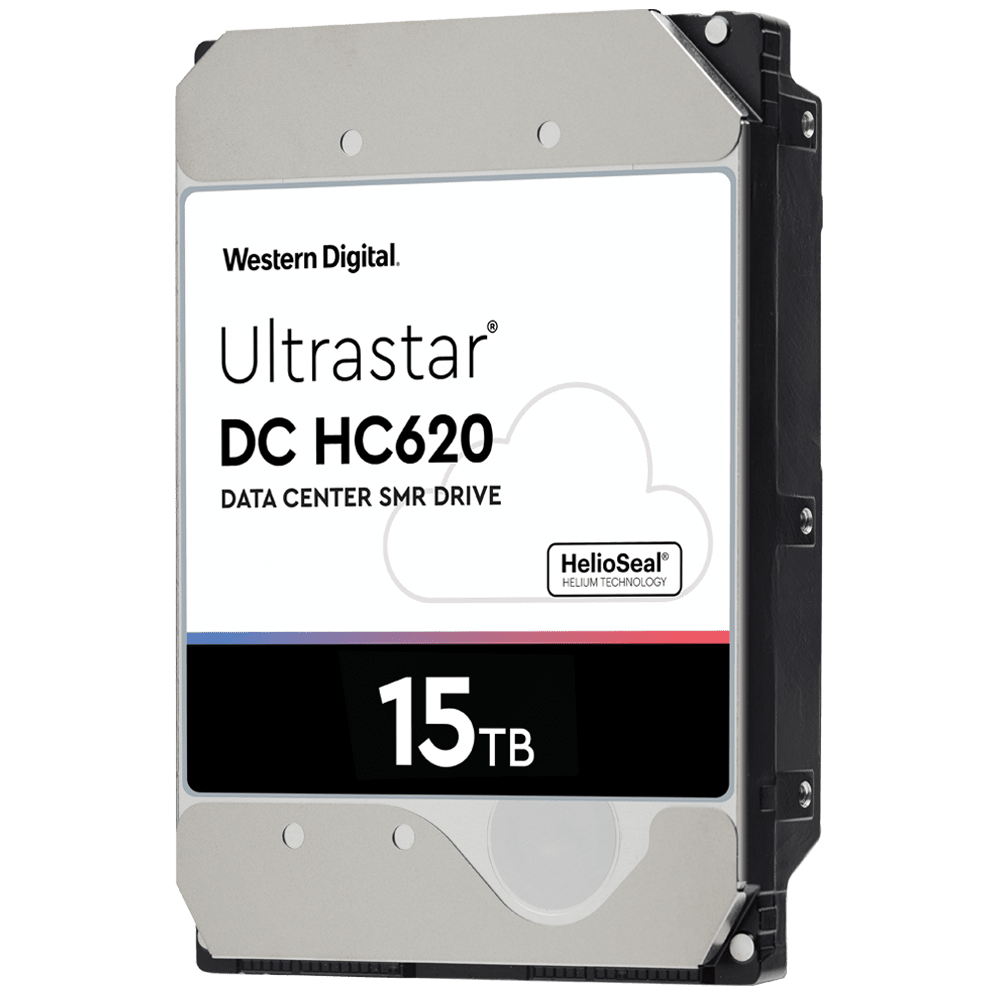

Ultrastar DC HC620
Purpose-Built Efficiency for Sequential Write Workloads
Click here to jump to more pricing!
Overview:
Scaling Cloud and Hyperscale Capacity to New Levels with SMR Technology
As cloud and hyperscale data centers continue to look for affordable options to capture the growing volume and variety of data, Western Digital’s Ultrastar DC HC600 series of drives help address Big Data challenges with sequential write workloads. Optimized to deliver ununbeaten capacity and low Total Cost of Ownership (TCO), the Ultrastar DC HC600 series provides unprecedented capacity leadership by harnessing two core complementary technologies: HelioSeal technology and host-managed SMR (HM-SMR). These field-proven technologies provide the foundation for delivering efficiency, quality, and reliable performance required by cloud and hyperscale data centers. Unlike CMR drives, HM-SMR drives are not drop-in replacements for traditional drives and require system software modifications that take advantage of the new command sets to ensure data is written sequentially to the drive. This software investment helps yield the most cost-efficient storage solutions.
Features:
Highlights
- Combines HelioSeal and host-managed SMR to deliver more cost-effective capacity than conventional magnetic recording (CMR) drives.
- Purpose-built for “sequential write” applications and workloads
- Consistent, predictable performance with uncompromising enterprise-class quality and reliability.
- 2.5M hour MTBF rating.
- 5-year limited warranty
Applications and Workload
- Big Data or Bulk Storage
- Cloud Storage
- Social Media
- Content Libraries, Streaming Media and Digital Media Assets
- Online Back-up and Replication
- Compliance, Audits, and Regulatory Records
Specifications:
| General | SATA | SAS |
|---|---|---|
| Interface | SATA 6 Gb/s | SATA 12 Gb/s |
| Capacity | 15TB / 4TB | 15TB / 4TB |
| Areal Density | 1108 / 1034 | 1108 / 1034 |
| Format: Sector size (bytes) | 4096 512 |
4096, 4112, 4160, 4224 512, 520, 528 |
| Performance | ||
| Data buffer (MB) | 512 | 512 |
| Rotational speed (RPM) | 7200 | 7200 |
| Interface transfer rate (MB/s, max) | 600 | 1200 |
| Sustained transfer rate (MiB/s, typical) (MB/s, typical) | 244 / 223 255 / 233 |
244 / 223 255 / 233 |
Documentation:
Download the Ultrastar DC HC620 Datasheet (PDF).
Pricing Notes:
- Pricing and product availability subject to change without notice.
