Ultrastar DC HC530
3.5-inch Helium Platform Data Center SAS or SATA Hard Drive

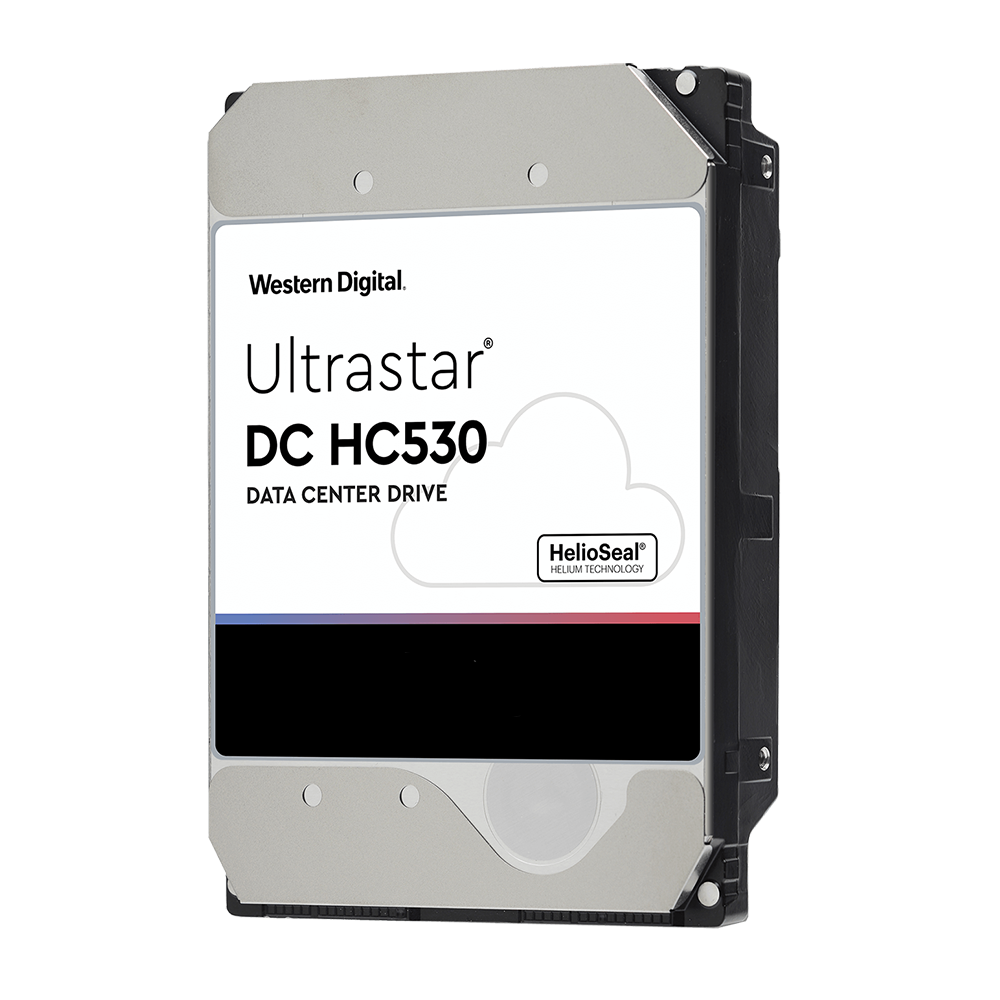

Ultrastar DC HC530 3.5-inch SATA Hard Drive - 14TB
Get a Quote!
- 14TB capacity in a standard 3.5-inch form factor
- CMR technology works seamlessly in capacity enterprise applications and environments
- Reliable, field-proven, 5th generation design
- HelioSeal design delivers outstanding power efficiency (Watts/TB)
- TDMR and improved dual-stage microactuator provide optimal head positioning and rotational vibration robustness
- 2.5M hours MTBF6 rating and 5-year limited warranty
- Self-Encrypting Drive options
Driving up Capacity and Driving Down TCO
The Ultrastar DC HC530 is designed for public and private cloud environments where storage density and cost-efficient infrastructure is critical.
- Cloud and Hyperscale storage
- Massive scale-out (MSO), high-density data centers
- Distributed File Systems
- Bulk storage using Object storage solutions like CEPH and OpenStack Swift
- Primary and secondary storage for Apache Hadoop for Big Data Analytics
- Surveillance analytics
Driving Up Capacity and Driving Down TCO for Cloud and Enterprise Data Centers
The breadth and depth of big data is driving the universal need for higher capacities across a broad spectrum of applications and workloads. Laying the foundation for a worryfree data center, Western Digital delivers capacity to conquer the data explosion–the 14TB Ultrastar DC HC530 hard drive. Built using HelioSeal technology, the industry’s only fifthgeneration helium platform and the basis for our high-capacity DC HC500 series, Ultrastar DC HC530 was designed for public and private cloud environments where storage density, Watts/TB and $/TB are critical parameters for creating the most cost-efficient infrastructure. HelioSeal technology is key to achieving higher drive capacities, higher reliability ratings and extreme power efficiency for lower levels of total cost of ownership (TCO) for cloud and enterprise customers.
HelioSeal Technology Helps Solve Challenges Facing Next Generation Data Centers
Data centers are facing growing pressures. Data volume is expanding, operating costs are rising, yet budgets remain flat. HelioSeal technology enables Ultrastar DC HC530 to deliver one of the lowest power profiles in the industry, helping data center architects meet eco-environmental goals and requirements. Designed to handle workloads up to 550TB per year, the Ultrastar DC HC530 is based on conventional magnetic recording (CMR) technology for drop-in simplicity in enterprise and cloud data centers. Features like TDMR technology (two-dimensional magnetic recording) and a third-generation dualstage microactuator work together to enhance head-positioning accuracy and deliver better performance, data integrity and overall drive reliability, critical in multi-drive environments where operational vibration is present. A choice of 6Gb/s SATA or 12Gb/s SAS interface enables easy integration into high performance data centers. Trust Western Digital and the Ultrastar DC HC530 hard drive to deliver more capacity, more efficiency, more reliability and more value to your data center.
Data Durability and Data Security Features to Support Compliance and Privacy Requirements
As drive capacity grows beyond single-digit TBs, object storage systems with erasure coding generally provide better data durability compared to RAID systems, given its tolerance for simultaneous error conditions. The Ultrastar DC HC530 is ideal for object storage implementations with its massive capacity and an unbeaten reliability rating. Compliance and privacy requirements drive the need for increased data security. The Ultrastar DC HC530 offers security and encryption options to help protect data from unauthorized use, on both SATA and SAS models.
Features and Benefits
|Feature / Function||Benefits|
|Capacity||14TB||Provides 75% more capacity than 8TB drives|
|Power Efficiency||Ultra-low Watts per terabyte (W/TB)||52% lower idle W/TB than 8TB Ultrastar air-filled drives|
|Data Security||Encryption options on both SATA and SAS models||Hardware-based encryption helps protect data from unauthorized use (SED options)|
|SATA Models||SAS Models|
|Interface||SATA 6Gb/s||SAS 12Gb/s|
|Format: Sector size (bytes)2,3||4Kn: 4096
|4Kn: 4096, 4112, 4160, 4224
512e: 512, 520, 528
|Max. Areal density (Gbits/sq. in.)||904||904|
|Data buffer4||512 MB||512 MB|
|Rotational speed||7200 RPM||7200 RPM|
|Latency average||4.16 ms||4.16 ms|
|Interface transfer rate (MB/s, max)||600 MB/s||1200 MB/s|
|Sustained transfer rate5 (max)||255MiB/s, typical
|Error rate (non-recoverable bits read)||1 in 1015||1 in 1015|
|Load/Unload cycles (at 40°C)||600,000||600,000|
|Availability (hrs/day x days/wk)||24x7||24x7|
|MTBF2 (M hours, projected)||2.5||2.5|
|Annualized Failure Rate2 (AFR, projected)||0.35%||0.35%|
|Limited Warranty||5 years|
|Idle/Operating (Bels, typical)||2.0 / 3.6||2.0 / 3.6|
|Requirement||+5 VDC, +12VDC||+5 VDC, +12VDC|
|Power consumption efficiency at idle (W/TB)||0.39 W/TB
|Ambient temperature||5° to 60°C||5° to 60°C|
|Shock (half-sine wave, 2ms, G)||70||70|
|Vibration (G RMS, 5 to 500Hz)||0.67 (XYZ)||0.67 (XYZ)|
|Ambient temperature||-40° to 70°C||-40° to 70°C|
|Shock (half-sine wave, 2ms, G)||300 (2ms) / 150 (11ms)||300 (2ms) / 150 (11ms)|
|Vibration (G RMS, 5 to 500Hz)||1.04 (XYZ)||1.04 (XYZ)|
|Dimensions (width x depth, mm)||101.6 (+/-0.25) x 147|
|Weight (max)||690 g|
1 One MB is equal to one million bytes, one GB is equal to one billion bytes and one TB equals 1,000GB (one trillion bytes). Actual user capacity may be less due to operating environment.
2 Advanced Format drive: 4K (4096-byte) physical sectors.
3 512e models can be converted to 4Kn and vice versa.
4 Portion of buffer capacity used for drive firmware
5 Based on internal testing; performance may vary depending on host environment, drive capacity, and other factors. 1MiB = 1,048,576 bytes (2²⁰), 1MB = 1,000,000 bytes (10⁶).
6 MTBF and AFR specifications are based on a sample population and are estimated by statistical measurements and acceleration algorithms under typical operating conditions for this drive model. MTBF and AFR ratings do not predict an individual drive’s reliability and do not constitute a warranty.
7 SATA models: Random RW 50/50 8KB QD=1 @40 IOPS, SAS models: Random RW 50/50 4KB QD=4 @MAX IOPS
8 Idle specification is based on use of Idle_A
Download the Western Digital Ultrastar DC HC530 Datasheet (.PDF)
