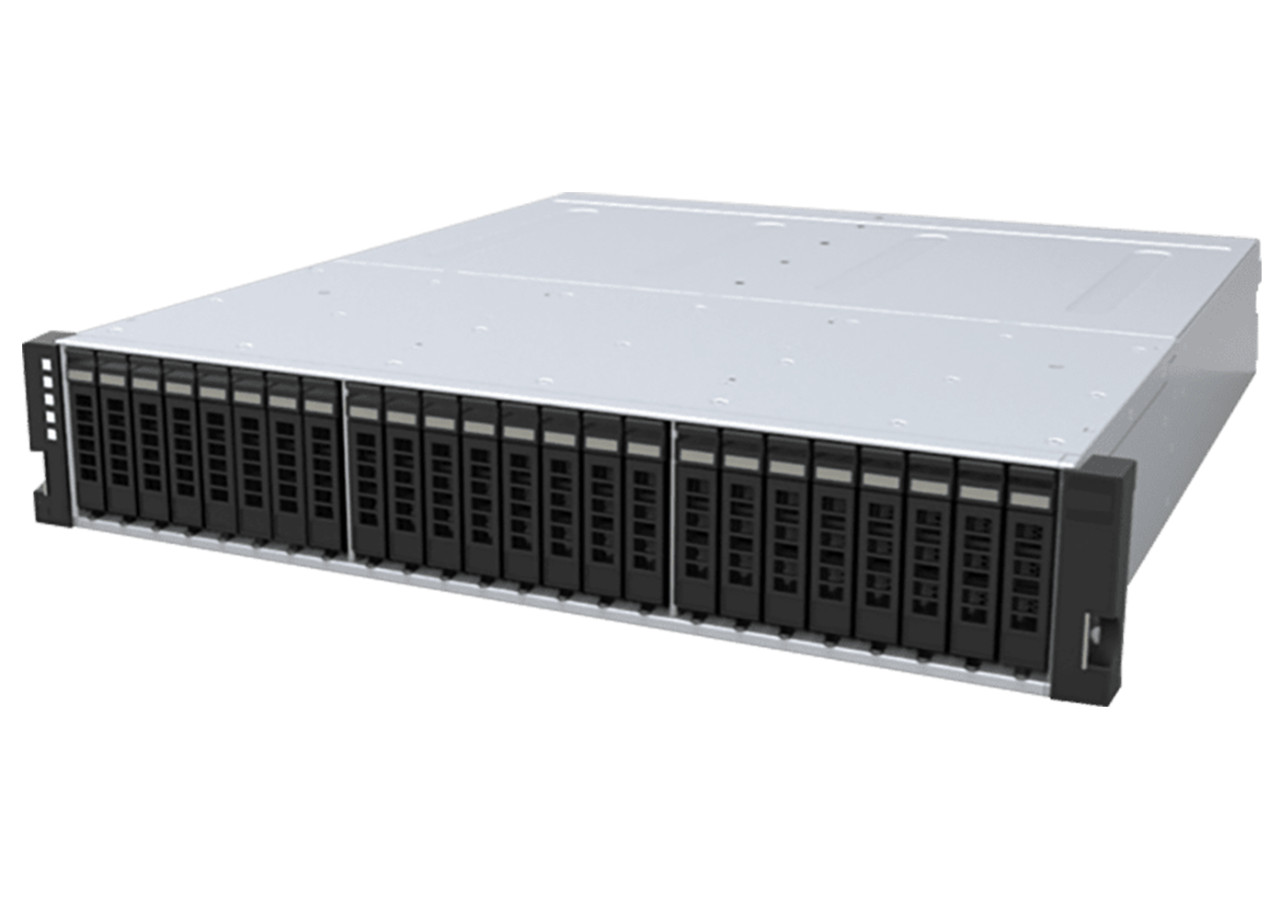

2U24 Flash Storage Platform
Designed for Software-Defined Storage (SDS) Systems

2U24

2U24 Flash Storage Platform

2U24 Flash Storage Platform SATA 960GB, 12 Drives, 11.52TB

#1ES0243
Contact us for pricing!

2U24 Flash Storage Platform SATA 960GB, 24 Drives, 23.04TB

#1ES0241
Contact us for pricing!

2U24 Flash Storage Platform SATA 1.92TB, 12 Drives, 23.04TB

#1ES0242
Contact us for pricing!

2U24 Flash Storage Platform SATA 1.92TB, 24 Drives, 46.08TB

#1ES0240
Contact us for pricing!

2U24 Flash Storage Platform SAS 3.84TB, 12 Drives, 46.08TB

#1ES0107
Contact us for pricing!

2U24 Flash Storage Platform SAS 3.84TB, 24 Drives, 92.16TB

#1ES0110
Contact us for pricing!

2U24 Flash Storage Platform SAS 7.68TB, 12 Drives, 92.16TB

#1ES0108
Contact us for pricing!

2U24 Flash Storage Platform SAS 7.68TB, 24 Drives, 183.32TB

#1ES0111
Contact us for pricing!

Click here to jump to more pricing!

Overview:

Designed for Enterprise and Cloud Storage

The 2U24 Flash Storage Platform is a key element of next-generation Software-Defined Storage (SDS) systems. The platform balances high performance with capacity, delivering high IOPS with low latency at up to 184TB capacity. By decoupling available storage from CPU resources, the platform offers the flexibility to improve the compute-to-capacity ratio. The 2U24 Flash Storage Platform addresses the demanding storage needs of large enterprises and cloud service providers requiring dense, shared flash storage.

Features:

Highlights

Up to 24 Ultrastar 2.5” SAS or SATA SSDs with a range of capacity options
Connect up to six hosts via the 12 Gb/s SAS-3 interface
Up to 4.7M IOPS, 23 GB/s; <1 ms latency
Enterprise-class high availability: hot-swappable SSDs, I/O modules, and PSUs (integrated fans)
Easily maintained, SSD modules are front accessible and hot swappable
5-year limited warranty

Applications and Workload

SDS Environments
High-Performance Computing
Public or Private Cloud
Analytics
Database
Virtualization
Scale-Out/Up Configurations

Specifications:

Model Number	1ES0243	1ES0241	1ES0242	1ES0240	1ES0107	1ES0110	1ES0108	1ES0111
SSD Type	SATA, 960GB	SATA, 960GB	SATA, 1.92TB	SATA, 1.92TB	SAS, 3.84TB	SAS, 3.84TB	SAS, 7.68TB	SAS, 7.68TB
Endurance	Read-Intensive, 0.6 DW/D	Read-Intensive, 0.6 DW/D	Read-Intensive, 0.6 DW/D	Read-Intensive, 0.6 DW/D	Read-Intensive, 1 DW/D	Read-Intensive, 1 DW/D	Read-Intensive, 1 DW/D	Read-Intensive, 1 DW/D
# of Drives	12	24	12	24	12	24	12	24
Capacity	11.52	23.04	23.04	46.08	46.08	92.16	92.16	183.32
4KB Random Read IOPS	735,000	735,000	735,000	735,000	3,000,000	4,700,000	3,000,000	4,700,000
4KB Random Write IOPS	312,000	312,000	312,000	312,000	336,000	672,000	264,000	528,000
Seq Read BW (MB/s)	5,700	5,700	5,700	5,700	21,350	23,000	17,800	23,000
Seq Write BW (MB/s)	4,600	4,600	4,600	4,600	12,350	23,000	12,100	23,000
Max. Drives	24 x 2.5" SSDs	24 x 2.5" SSDs	24 x 2.5" SSDs	24 x 2.5" SSDs	24 x 2.5" SSDs	24 x 2.5" SSDs	24 x 2.5" SSDs	24 x 2.5" SSDs
Available SSD Capacities	SAS(1DW/D): 3.48TB, 7.68TB SATA(0.6DW/D): 960GB, 1.92TB	SAS(1DW/D): 3.48TB, 7.68TB SATA(0.6DW/D): 960GB, 1.92TB	SAS(1DW/D): 3.48TB, 7.68TB SATA(0.6DW/D): 960GB, 1.92TB	SAS(1DW/D): 3.48TB, 7.68TB SATA(0.6DW/D): 960GB, 1.92TB	SAS(1DW/D): 3.48TB, 7.68TB SATA(0.6DW/D): 960GB, 1.92TB	SAS(1DW/D): 3.48TB, 7.68TB SATA(0.6DW/D): 960GB, 1.92TB	SAS(1DW/D): 3.48TB, 7.68TB SATA(0.6DW/D): 960GB, 1.92TB	SAS(1DW/D): 3.48TB, 7.68TB SATA(0.6DW/D): 960GB, 1.92TB

Documentation:

Download the 2U24 Flash Storage Platform Datasheet (PDF).

Pricing Notes:

Pricing and product availability subject to change without notice.
